Attributes
- Cartridge: -
- Delivery weight: 0.136kg
- Shipping height: 56mm
- Shipping width: 58mm
- Shipping length: 122mm
Product no.: 749014410
Mfr. No.: WFT2

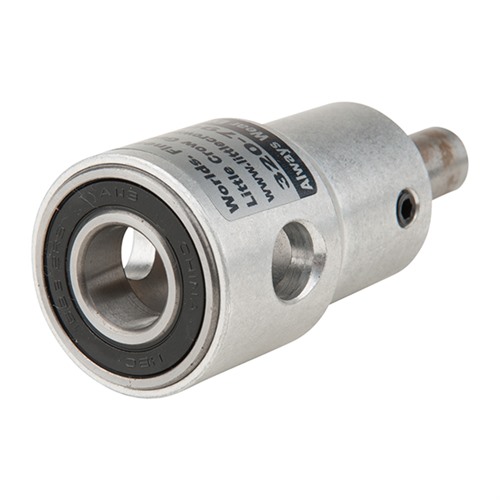

The WFT 2 is the next generation of WFT trimmers. The two main improvements are the ability to trim up to 45 caliber and interchange trim chambers. The WFT 2 has a half inch shaft and requires a half inch chuck to drive it. The feature most customers asked for was the ability to interchange trim chambers. Instead of press fitting the trim chambers, like the original WFT, the trim chambers on the WFT 2 are a slight slip fit in bearing with a groove cut for an O-ring which creates a press fit. Changing out trim chambers is accomplished by removing the cutter and pushing out the trim chamber with the knock-out dowel that is provided. Installing the trim chamber is accomplished by setting the trim chamber on a flat surface and steadily pushing the housing onto the trim chamber. Setting the cutter depth is easily adjusted by placing a “master case” in the trim chamber and sliding the cutter up to the case mouth and tightening down the set screws. Trimming is just as precise and clean as with our original trimmer. The trim chamber selection on the WFT 2 is by specific cartridge, but still trims by case family-just order the largest chamber in the family that you intend to trim. This unit and its inserts do not chamfer or deburr the case moouth of the cartridge case as it is trimmed. If you can't find the cartridge you need, please contact our Special Order Department at 800-741-0015Backorderable, delivery time approx. 4-12 weeks from the USA warehouse.
The WFT 2 Trimmer from LITTLE CROW GUNWORKS is designed for efficiency and precision, making it an essential tool for any gunsmith or shooting enthusiast.
The WFT 2 has seen significant improvements over its predecessor. The most requested feature was the ability to interchange trim chambers. Unlike the original WFT, which used press-fitting, the WFT 2's trim chambers utilize a slight slip fit in bearing, complete with a groove for an O-ring that ensures a secure press fit.
Changing trim chambers is simple: remove the cutter and push out the chamber using the provided knock-out dowel. To install a new trim chamber, place it on a flat surface and steadily push the housing onto it. Adjusting the cutter depth is straightforward; just insert a "master case" into the chamber, slide the cutter up to the case mouth, and tighten the set screws.
Although the trim chamber selection is specific to each cartridge, it still trims by case family—just order the largest chamber in the family you intend to trim. Please note that this unit and its inserts do not chamfer or deburr the case mouth of the cartridge case while trimming.
If you cannot find the cartridge you need, do not hesitate to contact our Special Order Department at 800-741-0015.
Itâs a work in progress 25/08/2018
This was difficult for me to get the adjustment right. I used the master case against the cutter and locked the set screws. Installed the trimmer in Dewalt drill and the cases came out .006 short the first time. I readjusted and now itâs + or - .002. Maybe Iâm too much a perfectionist. It is fast. The cutter has chips in the edges and some case chatter a bit till cut no matter how easy I insert the trimmer. Iâll order another cutter when theyâre in stock. Overall I believe most of my challenges are due to âoperator error!â Hence the 5 star rating.
Not the best choice 23/02/2017
I have to give credit to Little Crow Gunworks. They offered to take back my trimmer and fix it after I buggered it up. Using the dowlel to remove the insert caused the entire bottom bearing to pop out. Needed to hear the housing with a torch to get that back in. But I kept it, knowing I will never change out the trim chamber to trim another caliber.
Problems: The WFT required a half inch chuck. THat means your normal power drill will not work. That's just poor design thinking. Second, it is tough to clean. Third, as noted, it does not chamfer, so you get to double-work your brass. Last, it is not easy to adjust the cut height. Bottom line: there are better options.
