Attributes
- Diameter (in):
.266
- Delivery weight: 0.032kg
- Shipping height: 1mm
- Shipping width: 57mm
- Shipping length: 89mm
- UPC: 815145024565
Product no.: 749002449
Mfr. No.: B-266
815145024565 Hardened stainless steel neck bushing from L.E. Wilson. Wilson makes their bushings in .001” increments. The size marked on them refers to the middle of the bushing, which is reamed with a .003” taper. Since the case neck only reaches the middle, a slightly tighter sizing can be achieved by turning the bushing over, with the markings facing toward the case (markings facing down). This is mainly an emergency step to be taken if the brass has hardened, springing back more, and will no longer hold the bullet; or for fine-tuning the sizing to provide less additional “squeeze” than using the next smaller bushing in the normal way. Made to similar specs to the Redding neck bushings. Will not interchange with Forster or RCBS dies. Brownells Gun Tech™ Tip: There are two ways to select the steel neck bushings you need: (1) Measure the outside neck diameter of your loaded cartridge and subtract .002" to .003". This allows approximately .001" of brass to spring back for correct neck tension. (2) You can also measure the neck wall thickness of your case, multiply by two, add the diameter of your bullet and subtract .002" to .003".Delivery time approx. 7-14 days.
The NECK SIZING BUSHINGS from L.E. WILSON are designed for serious reloaders who demand accuracy and reliability.

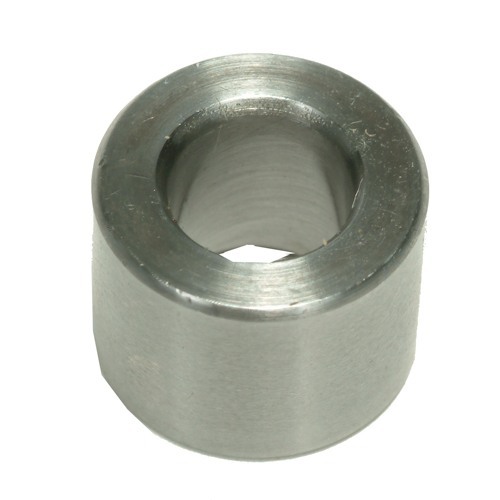

This hardened stainless steel neck bushing is manufactured by L.E. Wilson and is made in .001” increments for precise sizing. Each bushing is marked with a size that refers to the middle of the bushing, which is reamed with a .003” taper. Since the case neck only reaches the middle, a slightly tighter sizing can be achieved by turning the bushing over, with the markings facing toward the case (markings facing down).
This method is primarily an emergency step to be taken if the brass has hardened and is springing back more than usual, causing it to no longer hold the bullet. It can also be used for fine-tuning the sizing to provide less additional “squeeze” than using the next smaller bushing in the normal way.
These bushings are made to similar specifications as the Redding neck bushings but will not interchange with Forster or RCBS dies.
.266
