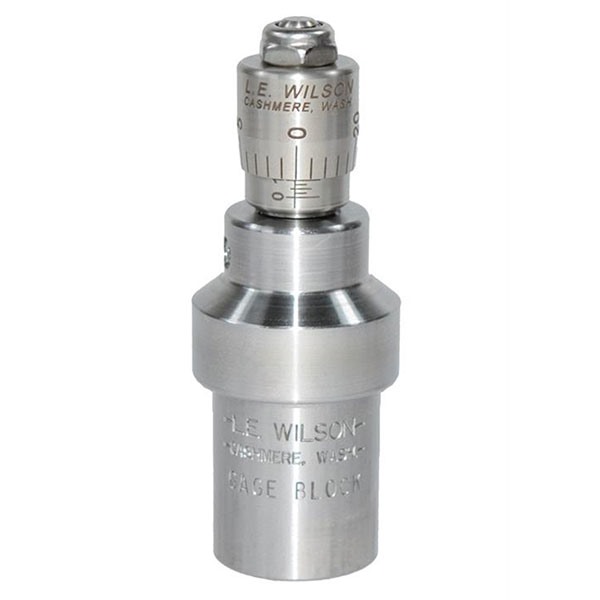

L.E. WILSON CASE GAGE DEPTH MICROMETER
Support
Easily measure headspace before and after sizing with the L.E. Wilson Case Gage Depth Micrometer, featuring .001 graduations and compatible with all L.E. Wilson Gages.
L.E. WILSON CASE GAGE DEPTH MICROMETER
144.9
144.9
1
GBP
144.9
GBP
£144.90
Prices inclusive of duty & VAT.
Product no.: 749016634
Mfr. No.: CG-MIC
815145025869 Every reloader should know exactly how much your Full Length Sizing Die is pushing back the shoulder. With the L.E.Wilson Case Gage Depth Micrometer you can do just that! It has never been easier to measure your cases headspace before and after sizing. The Depth Mic allows you to slip the micrometer perfectly over the top of the gage with your case inserted into the gage and take a measurement. Graduations of .001 comes with a Gage Block. One size works for all L.E. Wilson Gages.
Backorderable
Backorderable, delivery time approx. 4-12 weeks from the USA warehouse.
No charges until we ship
No charge:
Your credit card will not be charged when you place your order.
No commitments:
You are under no obligation until the goods are shipped. You can cancel your order at any time before shipping - free of charge.
Not until shipping:
Your credit card will only be charged once we ship your order. Not before.
Your credit card will not be charged when you place your order.
No commitments:
You are under no obligation until the goods are shipped. You can cancel your order at any time before shipping - free of charge.
Not until shipping:
Your credit card will only be charged once we ship your order. Not before.
- Accurate headspace measurement
- Easy to use design
- Compatible with all L.E. Wilson Gages
144.9
144.9
1
GBP
Description
Specification
Customers reviews
Accessories
L.E. WILSON CASE GAGE DEPTH MICROMETER
144.9
GBP
£144.90
Prices inclusive of duty & VAT.
Description:
Precision measurement for every reloader!
The L.E. Wilson Case Gage Depth Micrometer is an essential tool for reloaders who need to ensure accurate headspace measurements. Understanding how much your Full Length Sizing Die is pushing back the shoulder is crucial for optimal reloading.
Key Features:
- Easy Measurement: Slip the micrometer over the top of the gage with your case inserted, allowing for quick and precise measurements.
- Graduations: Features .001 graduations for detailed readings.
- Compatible: One size works for all L.E. Wilson Gages, making it versatile and convenient.

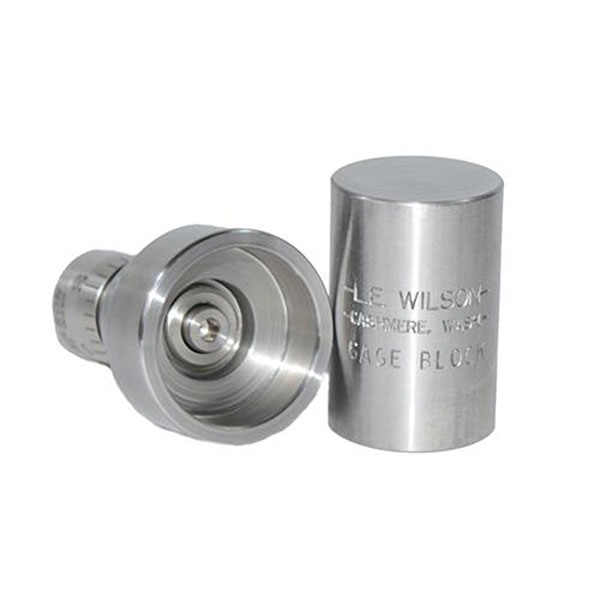

- Included: Comes with a Gage Block for added functionality.
With the L.E. Wilson Case Gage Depth Micrometer, measuring your cases' headspace before and after sizing has never been easier. Make sure you're getting the most accurate results in your reloading process!
Attributes
- Delivery weight: 0.283kg
- Shipping height: 51mm
- Shipping width: 51mm
- Shipping length: 152mm
- UPC: 815145025869
Item details
Made in USA
Customers reviews
Customer ratings (1)
4 / 5
Recommended
Does not work correctly on all cases 02/06/2018
Used in conjunction with an L.E. Wilson Case Gage this becomes an excellent and easy to use tool for knowing the headspace of a case. The micrometer does not have a vernier scale, but most users will probably be able to determine variations in headspace within +/- 0.0002". The result: shoulder bumping is no longer a guessing game. However, there is one caution. As shipped, the micrometer spindle has a considerable chamfer, so much so, that the spindle head can drop into the primer pocket recess of some cases (I ran into this problem with Lapua 8x57 Mauser cases). I sent mine back to L.E. Wilson and much to their credit they removed the chamfer from the spindle at no cost. Now it works fine. FYI: the spindle diameter is close to 0.270". If any part of a primer recess has a diameter greater than 0.270" then removing the chamfer on the spindle will not solve the problem. I regret that I did not record the diameter of the "as shipped" flat portion of a chamfered spindle, As a consequence, I can not tell you the maximum diameter of a primer recess for which the "as shipped" micrometer will give you reliable readings, but I suspect it will be reliable on most cases.
