Product no.: 749018047
Mfr. No.: KBFC-308W

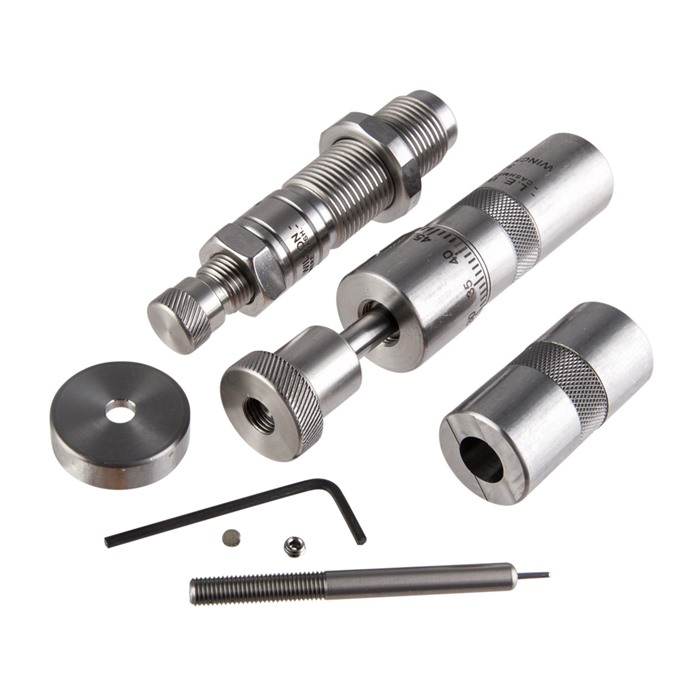

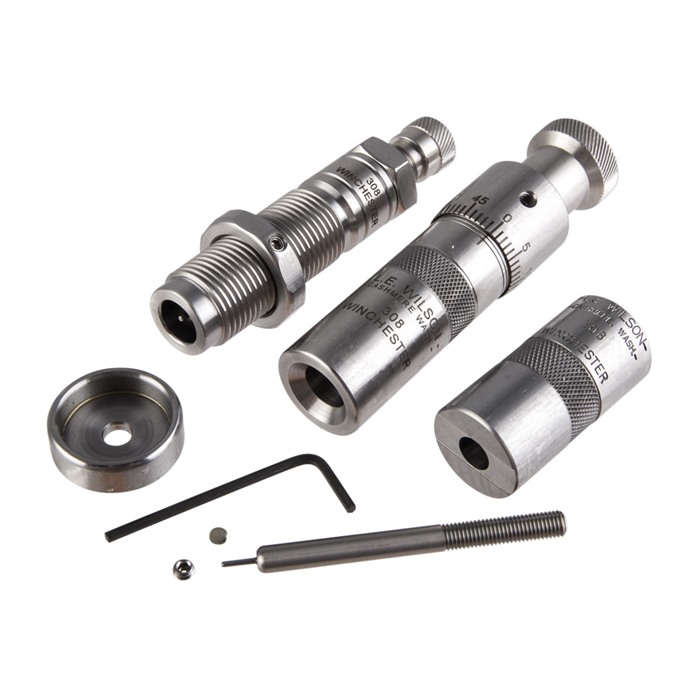

815145028853 This is a complete, upgraded L.E. Wilson stainless steel full-length die kit that includes: Full-length bushing resizing die Seater die Case-length headspace gauge The L.E. Wilson Bushing Type Full Length Sizing Die simultaneously resizes the entire case body, while letting you separately size the neck to provide the exact tension needed for the specific bullet you’re loading. Die includes an adjustable depth decapping rod, plus a spare decapping punch tip (just in case). It does not contain an expander. Standard 7/8"-14 threads for use in most common reloading presses. Wilson’s Stainless Steel Seater Die features a micrometer top that gives precise adjustments of seating depth in .001" increments. Both bullet and case are firmly held in perfect alignment as the bullet is seated in the case. Hand-die designed for use with a mallet or an arbor press. NOT for use on a conventional 7/8 press. The last component in the Wilson full-length die kit is their Case Length Headspace Gauge. It’s a one-piece, non-adjustable cylinder-type gauge that measures case length from the base of the cartridge to the shoulder, as well as the maximum case length. Used to compare resized cases and finished cartridges against the minimum SAAMI chamber dimensions, so you can be sure your finished rounds are within specifications for case length min/max AND headspace min/max. The Wilson full-length bushing die set with case gauge gives precision reloaders an extra advantage in making the most consistent finished ammo possible.Delivery time approx. 7-14 days.
This complete L.E. Wilson stainless steel full-length die kit is designed for precision reloaders who demand the best. It includes the following components:
The L.E. Wilson Bushing Type Full Length Sizing Die allows you to resize the entire case body while separately sizing the neck, ensuring the exact tension required for the specific bullet you’re loading. This die features an adjustable depth decapping rod and includes a spare decapping punch tip for your convenience. Please note that it does not contain an expander.
With standard 7/8"-14 threads, this die is compatible with most common reloading presses. The Wilson Stainless Steel Seater Die is equipped with a micrometer top that allows for precise adjustments of seating depth in .001" increments. Both the bullet and case are firmly held in perfect alignment during the seating process, ensuring optimal results.
This hand-die is designed for use with a mallet or an arbor press, and it is not suitable for conventional 7/8 presses.
The final component of the Wilson full-length die kit is the Case Length Headspace Gauge. This one-piece, non-adjustable cylinder-type gauge measures case length from the base of the cartridge to the shoulder, as well as the maximum case length. It is essential for comparing resized cases and finished cartridges against the minimum SAAMI chamber dimensions, ensuring that your finished rounds meet specifications for both case length and headspace.
The Wilson full-length bushing die set with case gauge provides precision reloaders with an extra advantage in producing the most consistent finished ammunition possible.
308 Winchester
Bushing Full Length Die Set
