Product no.: 749018044
Mfr. No.: KBFC-223R
KBFC-223r This is a complete, upgraded L.E. Wilson stainless steel full-length die kit that includes: Full-length bushing resizing die Seater die Case-length headspace gauge The L.E. Wilson Bushing Type Full Length Sizing Die simultaneously resizes the entire case body, while letting you separately size the neck to provide the exact tension needed for the specific bullet you’re loading. Die includes an adjustable depth decapping rod, plus a spare decapping punch tip (just in case). It does not contain an expander. Standard 7/8"-14 threads for use in most common reloading presses. Wilson’s Stainless Steel Seater Die features a micrometer top that gives precise adjustments of seating depth in .001" increments. Both bullet and case are firmly held in perfect alignment as the bullet is seated in the case. Hand-die designed for use with a mallet or an arbor press. NOT for use on a conventional 7/8 press. The last component in the Wilson full-length die kit is their Case Length Headspace Gauge. It’s a one-piece, non-adjustable cylinder-type gauge that measures case length from the base of the cartridge to the shoulder, as well as the maximum case length. Used to compare resized cases and finished cartridges against the minimum SAAMI chamber dimensions, so you can be sure your finished rounds are within specifications for case length min/max AND headspace min/max. The Wilson full-length bushing die set with case gauge gives precision reloaders an extra advantage in making the most consistent finished ammo possible.Delivery time approx. 7-14 days.

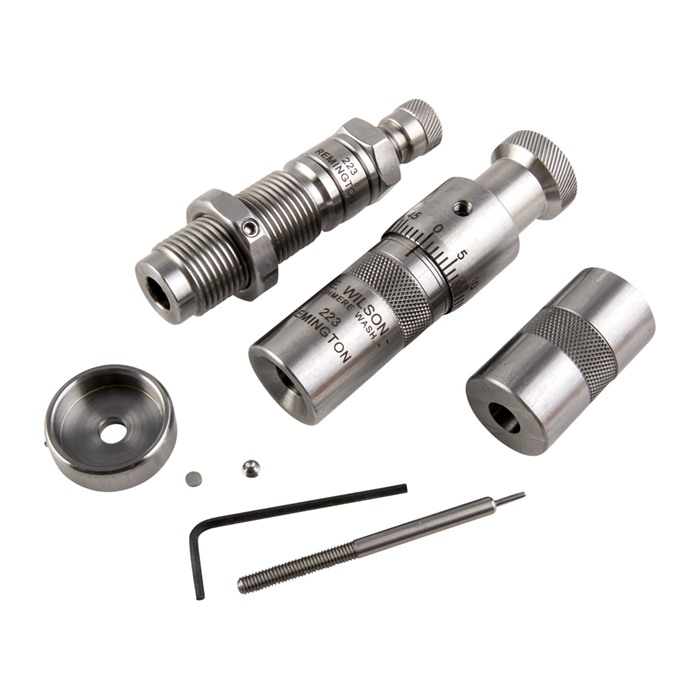

This complete, upgraded L.E. Wilson stainless steel full-length die kit includes:
The L.E. Wilson Bushing Type Full Length Sizing Die simultaneously resizes the entire case body while allowing you to separately size the neck, providing the exact tension needed for the specific bullet you’re loading. The die includes an adjustable depth decapping rod, plus a spare decapping punch tip (just in case). Please note that it does not contain an expander. It features standard 7/8"-14 threads for use in most common reloading presses.
Wilson’s Stainless Steel Seater Die is equipped with a micrometer top that allows for precise adjustments of seating depth in .001" increments. Both the bullet and case are firmly held in perfect alignment as the bullet is seated in the case. This hand-die is designed for use with a mallet or an arbor press, and is NOT suitable for use on a conventional 7/8 press.
The final component in the Wilson full-length die kit is their Case Length Headspace Gauge. This one-piece, non-adjustable cylinder-type gauge measures case length from the base of the cartridge to the shoulder, as well as the maximum case length. It is used to compare resized cases and finished cartridges against the minimum SAAMI chamber dimensions, ensuring that your finished rounds are within specifications for case length min/max AND headspace min/max.
The Wilson full-length bushing die set with case gauge provides precision reloaders with an extra advantage in creating the most consistent finished ammunition possible.
223 Remington
Bushing Full Length Die Set
