LYMAN

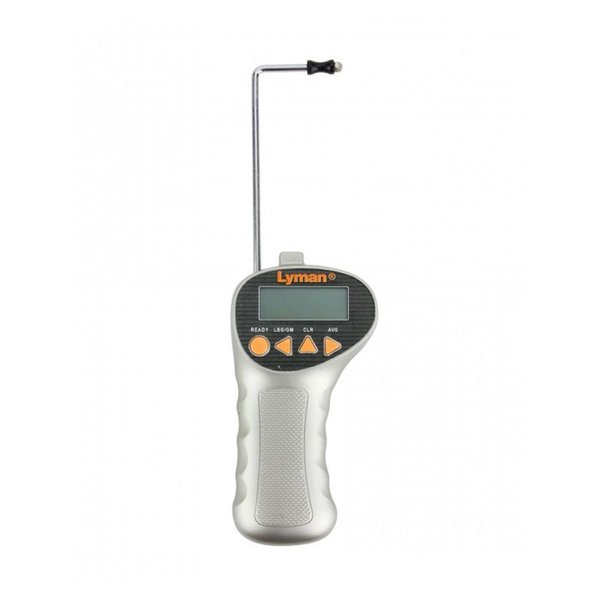

ELECTRONIC TRIGGER PULL GAUGE

011516522481 539000005

Description
Ratings (17)

State-Of-The-Art Technology Gives Fast & Accurate Readings

No weights or sliding pointers to worry about, just place the hook on the trigger and pull. The large, easy to read LCD quickly displays the results. Strain gauge technology provides accuracy to 1/10 of an ounce from 1 oz. to 5 pounds and to ½" oz. from 5 to 12 pounds. Lets you take up to ten readings and display the average. Displays either English or Metric format.

SPECS: Plastic case. Steel hook, 5¾" (14.6cm) long. 11½" (29.2cm) overall. 1 oz (28.35 g) to 12 pds. (5.4 kg) range.

More...

Customer ratings for LYMAN ELECTRONIC TRIGGER PULL GAUGE

Number of ratings: 17
From brownells.com: 17
Average rating: 4.4

Best Gauge. PERIOD (15/03/2010)

This gauge is so easy to use its ridiculous. Its the best when it comes to really fine tuning a trigger and getting things EXACT.

Good Price for an important Job (23/06/2010)

If you mess around performing trigger jobs, this is one tool you cannot do with out. This tool is high quality and easy to use

Not all it's cracked up to be (15/09/2010)

Tends to be very inconsistent unless measures are taken to control for any possible variable between data samples. Works best with a soft-jawed vice for holding the fire arm.

even a cave man could do it (03/09/2011)

Doesn't get much simpler than this

Perfect for weekend shooter to gunsmith! (01/12/2011)

The Lyman gauge is easy to use and takes the guess work out of adjusting triggers. I find that readings are easiest to take when the gun is secured, either in a gun-vise or wedged on/between sandbags. The gauge works better when the "L" of the rod faces away from the LCD display. Battery life is OK (takes a 9-volt) and the carrying case makes trasporting inside a range bag easy.

Great tool for the money (17/05/2012)

I had the less expensive spring scale. I purchased this one three days later. I knew that my custom made guns had trigger pulls of 3.5 pounds and 4 pounds. The Electronic Trigger Pull Gauge was right on. The sring pull gauge was off buy over 1.5 pounds. This Electronic Trigger Pull Gauge is worth saving your money and getting a quality tool.

must have (02/11/2012)

If you tinker with trigger, this product is a must. If you plan on doing anything to a trigger you have to know where you started and where you end up as far as trigger weight. The Lyman is accurate and repeatable. If you think you can guess weights or feel changes in weight, guess again.

Great Tool (01/09/2013)

I first bought the inexpensive RCBS gauge. It was terrible and was returned. This tool is easy to use and the readings are within a small variation from each sample. Try to secure the firearm and pull consistently in a straight line. The reading is captured and the tool will average up to 10 readings. Accuracy is +/- a tenth of an ounce under 5 lbs. and a half ounce to 12 lbs. If you work on triggers or want to evaluate a firearm this is a great tool.

great tool (02/09/2013)

great tool, using it for military rifle and a broad range of other rifles,shotguns and handguns.

Well here goes (18/10/2013)

I have owned mine for a couple years. I gunsmith for a living so quality tools are a must. This is a bit of a gadget. The 12 pound capacity is great for double action pistols. It is very prone to over travel on the actual reading so the capture will read much higher than the actual break point if you are not careful. I find it easier to watch it climb ounce by ounce and visually catch when it trips as the highest reading capture will go over by varying amounts.

With practice this really is an accurate scale. I check it frequently against my laboratory scales and it's always right there.

Dropped it one time onto our 5/8 rubber shop floor and it is dead. Lyman said no warranty on dropping. I am okay with that. My fault. No precision instrument should ever be dropped.

All that said, I find I can't live without it so I'm buying another.

Confusion!! (08/02/2014)

So, the Lyman weight gauge came in and I broke it out. As always I first tested it against several triggers with know pull weight we have installed.

WOW what a shock! This equipment is either broke or just a bad product! I used it on 1 pistol with a 4 lb trigger pull, (tested before).

It looks different than the one pictured so maybe I was sent a different product than above reviews.

After 20 minutes of using on this 1 pistol & never the same reading, I was pretty upset.
This gauge went from 0.1 oz - 15.0 lbs?
It never displayed the 4 lb trigger!

Works like a champ. (18/07/2014)

Purchased this to replace a spring unit that was giving wildly variable readings. Have an NRA weight set, but only use those or match rifles. Too time consuming for everyday use.Fresh out of the box I used the Lyman to set up three rifles that were otherwise ready to go out the door. Pull, adjust, pull, adjust, pull, pull, pull, pull, average, and you're done.

This is not a brute instrument. Treat it gently, though, and it works just fine.

Doesn't match NRA steel weights (02/02/2015)

I've used this for several years and have always been frustrated by the lack or repeatability. I recently acquired a set of 4.5 lb NRA match weights so I decided to 'pick them up' a few times as a test. The results (converted to fractions of a pound) were 5.12, 4.12, 3.93, 3.38, 4.45, 5.44 and 4.25 lbs. The true weight is 4.5 lbs and these readings were taken with the steel weights hanging from the Lyman - no over-travel issues as described by other reviewers. I guess there is a reason Lyman includes an averaging feature on this device.

Great Trigger Gauge (01/08/2015)

The Lyman Electronic Trigger Gauge is a durable piece of equipment for doing "average" work. If you need precise repeatable weight, use the competition steel weight method. I've used this gauge since 2013 on countless guns that have come through both the gunsmithing school I went to, and now the pawn shop I work in, and the device is still accurate, if that doesn't scream reliability I don't know what does.

The best trigger pull gauge I have used (09/12/2015)

The ability to accurately measure trigger pull in ounces and ounce fractions, coupled with averaging over up to 10 pulls makes this gauge worth the extra money compared to traditional spring gauges. If you are accurizing triggers this is the right tool for the job. This gauge is easy to use, easy to read and breaks down to store in most drawers or tool boxes.

Very easy to use and accurate....If.... (25/03/2016)

I build 1911's and getting a good trigger pull usually takes a lot of trial and adjustment cycles. I used a spring gauge initially but found them inaccurate as a rule. This gauge has the added capability of averaging a series of readings to even out your technique. But, the key to using this gauge is to make sure the pistol is secured in a vise or something to keep it from moving. Make sure each trial is exactly the same as the previous (same angle, placement of the roller, and rate of pull) If you don't, the readings will vary too widely. Double action pulls are harder to get accurately and there is a max pull it will not go beyond.

Worked good right out of the box. (14/12/2016)

Tried it out on a variety of guns. Measurements were consistent, and all functions of the gauge worked perfectly. Case is handy for protection of the gauge. Has auto cutoff function and averaging that is easy to use. Glad I finally got a nice trigger pull gauge....

Read 17 more ratings on brownells.com

89.9 89.9 1 GBP

Product no.: 539000005
LYMAN ELECTRONIC TRIGGER PULL GAUGE
Mfr Part: 7832248 011516522481 No weights or sliding pointers to worry about, just place the hook on the trigger and pull. The large, easy to read LCD quickly displays the results. Strain gauge technology provides accuracy to 1/10 of an ounce from 1 oz. to 5 pounds and to ½" oz. from 5 to 12 pounds. Lets you take up to ten readings and display the average. Displays either English or Metric format.

89.9 GBP 112 £89.90 *

Delivery time approx. 7-14 days.
More than 10 pieces in USA warehouse

Specs: Pounds: Multiple

Add to shopping list

Ask question

Details

Add to shopping list

Ask question

Top takeaways

The Lyman Electronic Trigger Pull Gauge features a large LCD for easy reading and strain gauge technology for precise measurements.
It offers a measurement range from 1 oz to 12 lbs with accuracy to 1/10 of an ounce, and can display results in English or Metric units.
The device allows for up to ten readings with the option to display the average, enhancing consistency in measuring trigger pull.

Attributes

Pounds: Multiple Delivery weight: 0.386kg

🎯 Get precise trigger pull measurements with LYMAN's Electronic Trigger Pull Gauge! 📊 Accurate to 1/10 oz, easy-to-read LCD, English/Metric. Learn more! 🔍
