HARRISON DESIGN & CONSULTING

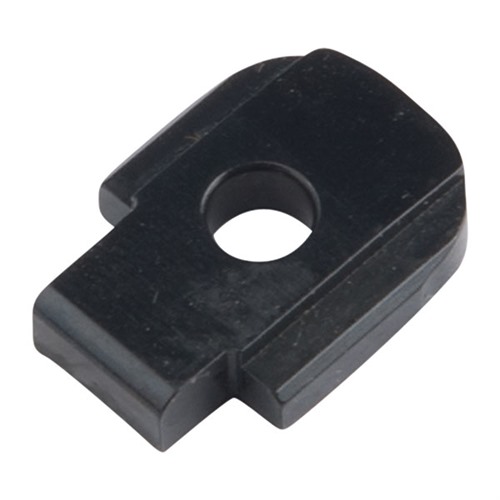

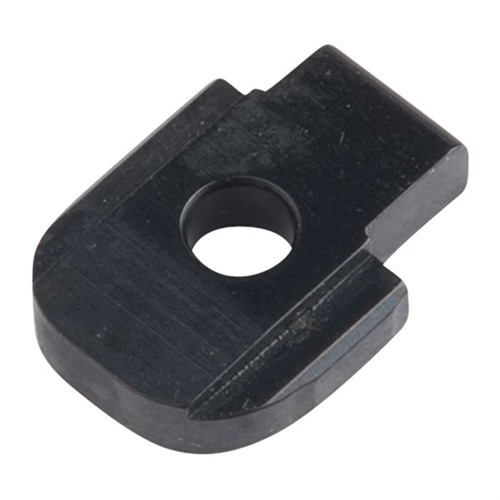

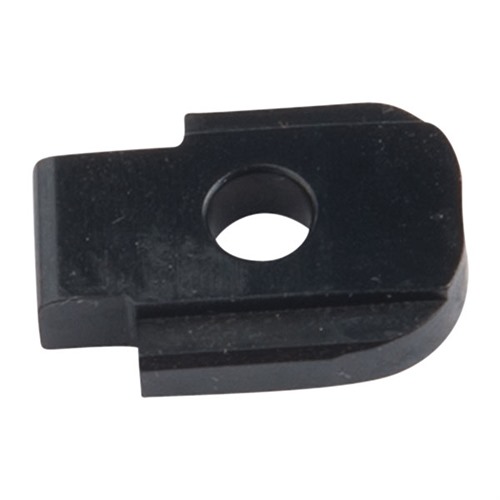

1911 EXTREME SERVICE FIRING PIN STOP
HARRISON DESIGN & CONSULTING EXTREME SERVICE 1911 FIRING PIN STOP,S80 45ACP GOVT MODEL
Mfr Part: HD207 Highly recommended for both heavy recoiling 1911s and also 1911s with shorter than Gov't Model slides. The Extreme Service firing pin stop is CNC machined out of an oil-quenching tool steel that was chosen for a balance of impact and wear resistance, with a GI hardness is 44-50Rc. The Extreme Service FPS is made .482" wide so it can be fitted to your slide and extractor to prevent extractor "clocking". It has chamfered fitting pads on each side to make your job easier and the FPS fit better into the slide. It has a 3/64" radius machined on the bottom rear corner and a 3 degree angle at the top rear face, both of which act to take away mechanical advantage from the slide when it's cocking the hammer, by moving the contact point to the bottom of the hammer face. This will retard the initial movement of the slide, slowing its rearward speed a little. This will allow short length 1911s to have less imbalance between the slide's speed and the magazine spring's force on the last couple of rounds, reducing the bolt over base type of malfunctions caused by the slide outrunning the magazine spring.
Top takeaways
- The Extreme Service firing pin stop is designed for high recoil 1911s and those with slides shorter than the Gov't Model, improving performance and reliability.
- Constructed from oil-quenching tool steel for a balance of impact and wear resistance, it can be fitted to prevent extractor "clocking" and enhance slide and extractor interaction.
- Features a radius and angle on the rear corners to reduce the slide's initial rearward speed, minimizing malfunctions caused by the slide outrunning the magazine spring.
Attributes
Make: 1911 Model: Commander,Government,Officers Delivery weight: 0.007kg
Item details
US export classification: 0A501.x
HARRISON DESIGN & CONSULTING EXTREME SERVICE 1911 FIRING PIN STOP
Mfr Part: HD205 Highly recommended for both heavy recoiling 1911s and also 1911s with shorter than Gov't Model slides. The Extreme Service firing pin stop is CNC machined out of an oil-quenching tool steel that was chosen for a balance of impact and wear resistance, with a GI hardness is 44-50Rc. The Extreme Service FPS is made .482" wide so it can be fitted to your slide and extractor to prevent extractor "clocking". It has chamfered fitting pads on each side to make your job easier and the FPS fit better into the slide. It has a 3/64" radius machined on the bottom rear corner and a 3 degree angle at the top rear face, both of which act to take away mechanical advantage from the slide when it's cocking the hammer, by moving the contact point to the bottom of the hammer face. This will retard the initial movement of the slide, slowing its rearward speed a little. This will allow short length 1911s to have less imbalance between the slide's speed and the magazine spring's force on the last couple of rounds, reducing the bolt over base type of malfunctions caused by the slide outrunning the magazine spring.
HARRISON DESIGN & CONSULTING EXTREME SERVICE 1911 FIRING PIN STOP, W/ LPA ADJ. SIGHTS
Mfr Part: HD205LPA Highly recommended for both heavy recoiling 1911s and also 1911s with shorter than Gov't Model slides. The Extreme Service firing pin stop is CNC machined out of an oil-quenching tool steel that was chosen for a balance of impact and wear resistance, with a GI hardness is 44-50Rc. The Extreme Service FPS is made .482" wide so it can be fitted to your slide and extractor to prevent extractor "clocking". It has chamfered fitting pads on each side to make your job easier and the FPS fit better into the slide. It has a 3/64" radius machined on the bottom rear corner and a 3 degree angle at the top rear face, both of which act to take away mechanical advantage from the slide when it's cocking the hammer, by moving the contact point to the bottom of the hammer face. This will retard the initial movement of the slide, slowing its rearward speed a little. This will allow short length 1911s to have less imbalance between the slide's speed and the magazine spring's force on the last couple of rounds, reducing the bolt over base type of malfunctions caused by the slide outrunning the magazine spring.
Upgrade your 1911 with the HARRISON DESIGN Extreme Service Firing Pin Stop 🎯. Perfect for heavy recoil & short slides. Get improved performance & reliability! 🔧 Learn more.
