EGW
HD BALL HEAD DISCONNECTOR

841370100354 296000207

Description
Ratings (3)

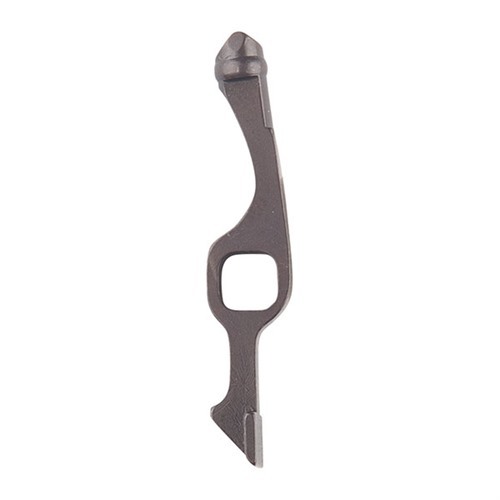

EGW’s 1911 HD Ball Head Disconnector installs to tighten tolerances in your 1911. The top of the disconnector is taller so that it does not drag on the sear pin. This is important when you are doing trigger work under 2 1/4 lbs. since you can feel the slightest drag. The ball head has been designed to get rid of the click usually found on 1911s caused by the head moving back and forth in the frame hole. The geometry of the disconnector has been altered so that it is not tripped when inserting a loaded magazine. The bottom spade incorporates a small .006 corner radius so that the disconnector does not dig into the trigger bow and it improves functionality.

Specs: Machined from: American-made 4140 chrome molly steel hardened 48 to 49 Rc.

More...

Customer ratings for EGW HD BALL HEAD DISCONNECTOR

Number of ratings: 3
From brownells.com: 3
Average rating: 5

Outstanding upgrade (07/11/2015)

This disconnector is ready to rock out of the box. I really like EGW parts in general and this one is a must use if upgrading a 1911's firing system. This is now my go to part.

Incomplete technical information (18/01/2016)

I think EGW is holding back on the information on this part. They still make their standard disconnector which works in most guns. This particular disconnector is especially suited to the Kimber which has used a Chip McCormick ball-headed disconnect from the very first. The Kimber disconnector channel is a bit on the large side compared with many other frames, so this part works best on Kimber style (McCormick) frames. It is really not longer than other disconnectors although it may have a slightly different shape than other types. It is NOT a blanket solution for all guns and there is no problem using EGW's standard part or any other high quality part just because it doesn't use the ball-head concept. It is not usual for any disconnector to drag on the sear pin, although changing to a different style may cure the problem if it crops up. Finally I don't see why so many descriptions claim that their part eliminates the "click". Disconnectors are supposed to click back into the cutout after the trigger is released. If you don't hear anything, then there is a problem.

does what it suppose to (16/10/2017)

this disconnect does what its suppose to, the click that is heard is not the click that is heard when resetting the trigger that's normal the click that is speaking of is a click wright before pulling the trigger usually happens when the disconnect is warn or to small in dia. and if a shooter first hears it, it's very annoying, like a nat buzzing around your nose while trying to get on target, on some pistols using a standard disconnect you can use a center punch a dimple on the front of the diconnector hole to tighten up or one might have to file or sand the ball head to fit it in so to get a smooth up and down cycle of the disconnector never file the pistol frame to fit

Read 3 more ratings on brownells.com

37.9 37.9 1 GBP

Product no.: 296000207
EGW HD BALL HEAD DISCONNECTOR
Mfr Part: 10050 841370100354 EGW’s 1911 HD Ball Head Disconnector installs to tighten tolerances in your 1911. The top of the disconnector is taller so that it does not drag on the sear pin. This is important when you are doing trigger work under 2 1/4 lbs. since you can feel the slightest drag. The ball head has been designed to get rid of the click usually found on 1911s caused by the head moving back and forth in the frame hole. The geometry of the disconnector has been altered so that it is not tripped when inserting a loaded magazine. The bottom spade incorporates a small .006 corner radius so that the disconnector does not dig into the trigger bow and it improves functionality.

37.9 GBP 46 £37.90 *

Delivery time approx. 7-14 days.
More than 10 pieces in USA warehouse

Specs: Make: 1911 Model: Government, Commander, Officers

Add to shopping list

Ask question

Details

Add to shopping list

Ask question

Top takeaways

EGW's 1911 HD Ball Head Disconnector enhances trigger work under 2 1/4 lbs by preventing drag on the sear pin.
Designed to eliminate the common clicking sound in 1911s and prevents tripping when inserting a loaded magazine.
Features a .006 corner radius on the bottom spade to avoid digging into the trigger bow, enhancing functionality.

Attributes

Make: 1911 Model: Commander,Government,Officers Delivery weight: 0.068kg

Item details

Made in USA
US export classification: 0A501.c

🔧 Upgrade your 1911 with the EGW HD Ball Head Disconnector! Eliminate click & enhance trigger work under 2 1/4 lbs. 🛠️ Perfect for Government, Commander, & Officers models. Learn more now!

Description
Ratings (3)

Specs: Machined from: American-made 4140 chrome molly steel hardened 48 to 49 Rc.

More...

Customer ratings for EGW HD BALL HEAD DISCONNECTOR

Number of ratings: 3
From brownells.com: 3
Average rating: 5

Outstanding upgrade (07/11/2015)

This disconnector is ready to rock out of the box. I really like EGW parts in general and this one is a must use if upgrading a 1911's firing system. This is now my go to part.

Incomplete technical information (18/01/2016)

does what it suppose to (16/10/2017)

Read 3 more ratings on brownells.com
