Rifle Parts Bolt Parts Charging Handle Parts Charging Handles KIDD INNOVATIVE DESIGN GUIDE ROD & RECOIL SPRING ASSEMBLY RUGER 10/22 BLACK VITON Support

Upgrade your Ruger 10/22 with a comfortable bolt handle, a super slick guide rod, and interchangeable tuning springs for optimal recoil adjustment.

KIDD INNOVATIVE DESIGN GUIDE ROD & RECOIL SPRING ASSEMBLY RUGER 10/22 BLACK VITON

810132050565 430109370

Filters:

Variations
Filters:
Variations:

Variations:

Upgrade your Ruger 10/22 with a comfortable bolt handle, a super slick guide rod, and interchangeable tuning springs for optimal recoil adjustment.
GUIDE ROD & SPRINGS BOLT HANDLE CHARGING ASSEMBLY 10/22 - GUIDE ROD & RECOIL SPRING ASSEMBLY RUGER 10/22 BLACK VITON
69.9 GBP 0 £69.90 *
Backorderable
Finish: Black Make: Ruger, Brownells Model: 10/22, BRN-22 Product no.: 430109370
Backorderable
69.9 GBP 0 £69.90 *
Upgrade your Ruger 10/22 with a comfortable bolt handle, super slick guide rod, and interchangeable tuning springs for precise recoil adjustment.
GUIDE ROD & SPRINGS BOLT HANDLE CHARGING ASSEMBLY 10/22 - GUIDE ROD & RECOIL SPRING ASSEMBLY RUGER 10/22 SILVER VITON
69.9 GBP 0 £69.90 *
Backorderable
Finish: Silver Make: Ruger, Brownells Model: 10/22, BRN-22 Product no.: 430109369
Backorderable
69.9 GBP 0 £69.90 *
69.9 69.9 2 GBP
69.9 GBP £69.90

Prices inclusive of duty & VAT.

Product no.: 430109370

Mfr. No.: KIDD-22GRSK-BV

810132050565 This great upgrade kit for your 10/22 will provide you with a comfortable bolt handle to grasp, a ""super slick"" guide rod, and the ability to tune the recoil of your rifle with their interchangeable springs. All bolt handle lengths are 1 3/4"", which is 1/4"" longer than the factory bolt handle assembly kit giving greater clearance for the shooter's knuckles while racking the bolt. The three tuning springs come in varying tensions for the ultimate in tuning capability. Though by and large the standard tension spring will serve the shooter throughout the different ammunition velocities. If, due to tolerance stacking or preferred ammunition the cycling of the action is out of sync then the shooter has the capability to change the spring without using the more primitive method of cutting coils to tune a spring. FEATURES: Upgrade the bolt handle assembly in the 10/22 3 distinctly contoured handles to choose from Slick guide rod for easy racking Interchangeable tuning springs:(White=standard, Red=10% increase, Grey=10% decrease) Handle Weights: black with black viton cushion = .4 oz silver with black viton cushion= .6 oz black ring (6 ring cuts) = .3 oz silver ring (6 ring cuts) = .6 oz black 762 (modified z shape flute) = .3 oz silver 762 (modified z shape flute) = .6oz Precision ground guide rod is made from hardened tool steel and held to 2/10,000"" tolerance throughout its entire length. The rod is nitride treated which gives its surface a 70C rockwell (harder than a file) surface hardness. Guaranteed the smoothest and slickest guide rod in the industry. Installation instructions: After removing the stock from the barreled action, remove the trigger and bolt stop. This will allow the needed clearance for the bolt to be removed along with the bolt handle assembly. After choosing your proper spring tension slip the bolt handle assembly in from the ejection port, placing the cone end of the rod into the containment hole in the receiver. Then fully compress the bolt handle assembly while placing the bolt on it. After the mating of the bolt handle and bolt, let off the containment allowing the bolt to go forward. Install the bolt stop pin, trigger and stock. The video below offers some of the finer installation points. Packaging Includes: bolt handle guide rod 3 tuning springs
Backorderable
Be the first to rate this product
1
2
3
4
5
6
7
8
9
10+
£69.90

Prices inclusive of duty & VAT.

1
2
3
4
5
6
7
8
9
10+

Backorderable, delivery time approx. 4-12 weeks from the USA warehouse.

100-Day Return Policy

Backorderable, delivery time approx. 4-12 weeks from the USA warehouse.

100-Day Return Policy
No charges until we ship
No charge:
Your credit card will not be charged when you place your order.

No commitments:
You are under no obligation until the goods are shipped. You can cancel your order at any time before shipping - free of charge.

Not until shipping:
Your credit card will only be charged once we ship your order. Not before.
  • Comfortable bolt handle grip
  • Interchangeable tuning springs
  • Slick hardened guide rod
Wish List Ask question
69.9 69.9 2 GBP
Description Specification Customers reviews Accessories

KIDD INNOVATIVE DESIGN GUIDE ROD & RECOIL SPRING ASSEMBLY RUGER 10/22 BLACK VITON

69.9 GBP £69.90

Prices inclusive of duty & VAT.

1
2
3
4
5
6
7
8
9
10+
£69.90

Prices inclusive of duty & VAT.

1
2
3
4
5
6
7
8
9
10+

Backorderable, delivery time approx. 4-12 weeks from the USA warehouse.

100-Day Return Policy

Description:

Enhance your shooting experience with the KIDD Innovative Design Guide Rod & Springs Bolt Handle Charging Assembly for 10/22

This exceptional upgrade kit for your Ruger 10/22 offers a comfortable bolt handle to grasp, a "super slick" guide rod, and the ability to fine-tune the recoil of your rifle with interchangeable springs.

Key Features:

  • Upgrade the bolt handle assembly in the 10/22
  • Three distinctly contoured handles to choose from
  • Slick guide rod for easy racking
  • Interchangeable tuning springs:
    • White = standard
    • Red = 10% increase
    • Grey = 10% decrease

Handle Weights:

  • Black with black viton cushion = 0.4 oz
  • Silver with black viton cushion = 0.6 oz
  • Black ring (6 ring cuts) = 0.3 oz
  • Silver ring (6 ring cuts) = 0.6 oz
  • Black 762 (modified z shape flute) = 0.3 oz
  • Silver 762 (modified z shape flute) = 0.6 oz

The precision ground guide rod is made from hardened tool steel and maintains a tolerance of 2/10,000". The rod is nitride treated, providing a surface hardness of 70C Rockwell (harder than a file). Guaranteed to be the smoothest and slickest guide rod in the industry.

Installation Instructions:

After removing the stock from the barreled action, take out the trigger and bolt stop. This will provide the necessary clearance for the bolt and bolt handle assembly to be removed. Once you've chosen your preferred spring tension, slide the bolt handle assembly in from the ejection port, placing the cone end of the rod into the containment hole in the receiver. Fully compress the bolt handle assembly while placing the bolt on it. After the bolt handle and bolt are mated, release the containment, allowing the bolt to go forward. Finally, install the bolt stop pin, trigger, and stock. For additional guidance, refer to the video below that highlights finer installation points.

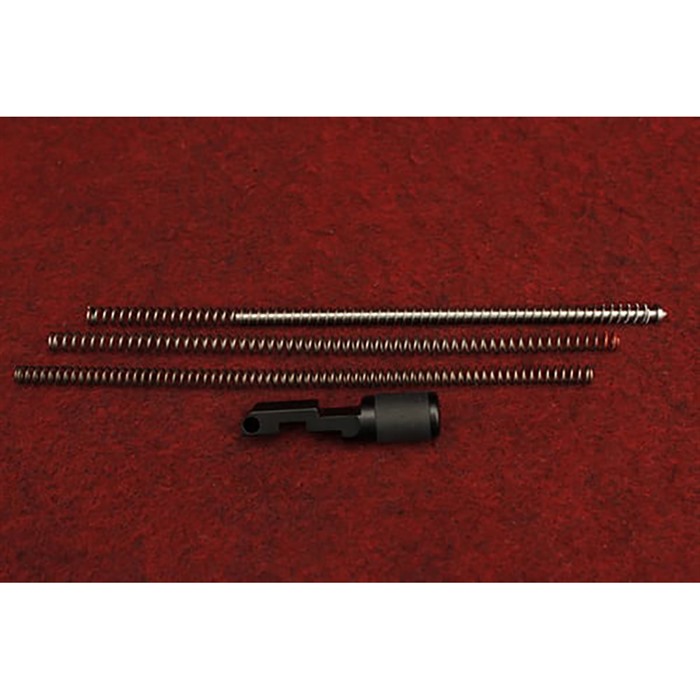

Packaging Includes:

  • Bolt handle
  • Guide rod
  • 3 tuning springs


Attributes

  • Finish:
    Black
  • Model:
    BRN-22
    ,
    10/22
  • Weapon type:
    Brownells
    ,
    Ruger
  • Delivery weight: 0.031kg
  • Shipping height: 19mm
  • Shipping width: 19mm
  • Shipping length: 159mm
  • UPC: 810132050565

Item details

Made in USA
US export classification: 0A501.x
