Optics & Mounting Scopes Rifle Scopes BROWNELLS MPO 1-6X24MM SFP ILLUMINATED LPVO DONUT RETICLE W/30MM MOUNT Support

Experience rapid target acquisition with the Brownells 1-6x24 MPO, featuring an illuminated Donut reticle, fully multicoated lenses, and capped turrets.

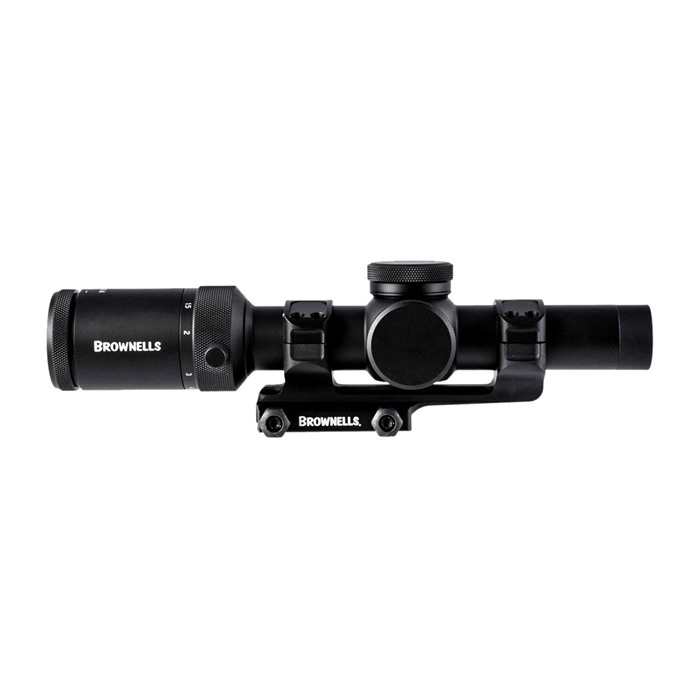

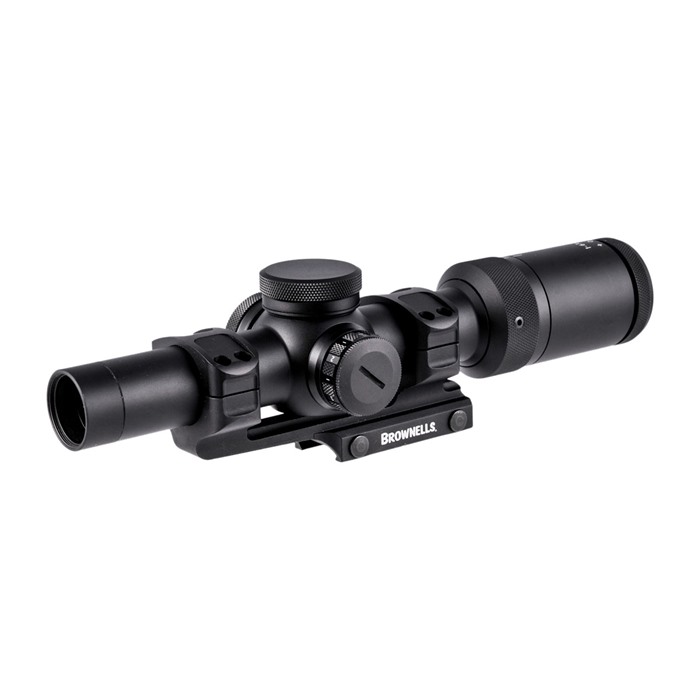

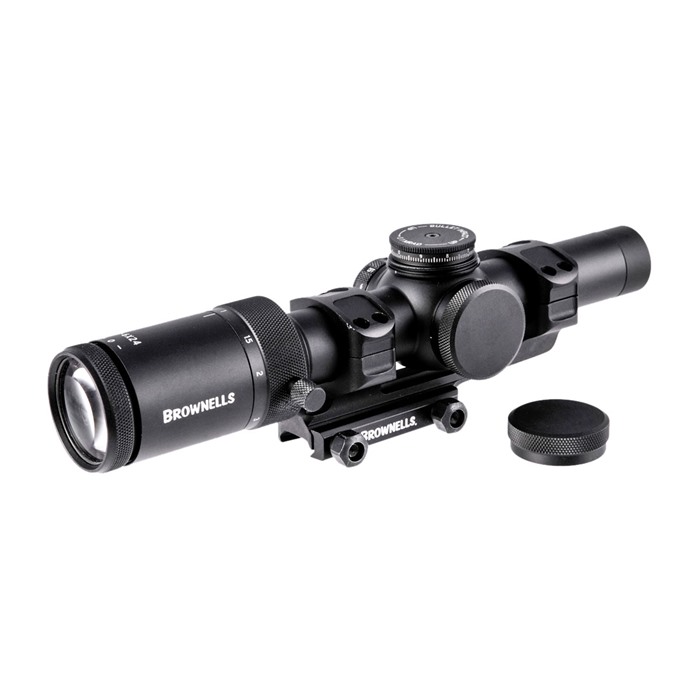

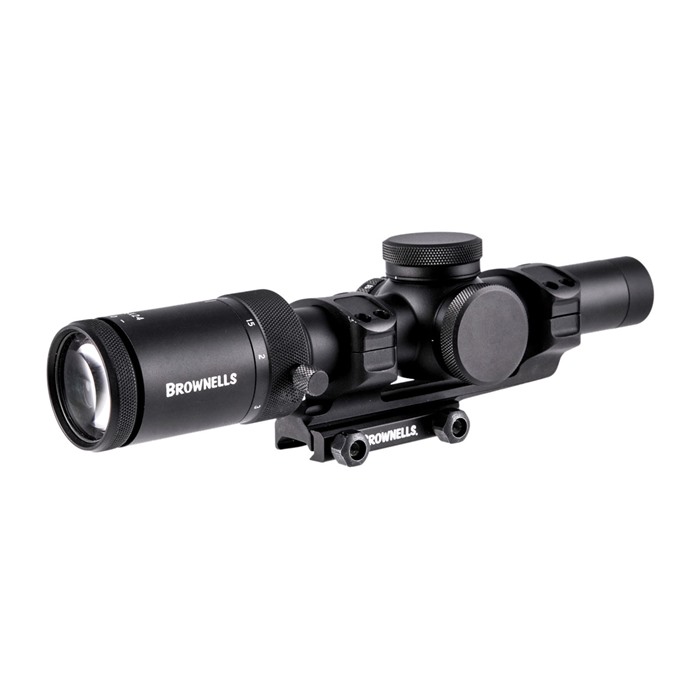

BROWNELLS MPO 1-6X24MM SFP ILLUMINATED LPVO DONUT RETICLE W/30MM MOUNT

050806011656 080001426

Filters:

Variations
Filters:
Variations:

Variations:

Experience rapid target acquisition with the Brownells 1-6x24 MPO, featuring an illuminated Donut reticle, fully multicoated lenses, and capped turrets.
MATCH PRECISION OPTIC (MPO) 1-6X24MM SFP ILLUMINATED RIFLE SCOPE - MPO 1-6X24MM SFP ILLUMINATED LPVO DONUT RETICLE W/30MM MOUNT
Not available
Battery: CR-2032 Click Value: 0.1 MIL Eye Relief: 3.50'' Finish: Black Focal Plane: Second Illumination: Yes Length: 9.3'' Max Magnification: 6x Min. Magnification: 1x Model Number: Match Precision Optics Objective Size: 24mm Reticle: Donut Tube Size: 30mm Weight: 29.2 oz Product no.: 080001426
Not available
599.9 GBP 0 £599.90 *
Experience rapid target acquisition with the Brownells 1-6x24 MPO scope, featuring an illuminated Donut reticle, 30mm tube, and capped turrets for precision.
MATCH PRECISION OPTIC (MPO) 1-6X24MM SFP ILLUMINATED RIFLE SCOPE - MPO 1-6X24MM SFP ILLUMINATED LPVO DONUT RETICLE BLACK
469.9 GBP 0 £469.90 *
Not available
Battery: CR-2032 Click Value: 0.1 MIL Eye Relief: 3.5'' Finish: Black Focal Plane: Second Illumination: Yes Length: 9.3'' Max Magnification: 6x Min. Magnification: 1x Model Number: Match Precision Optics Objective Size: 24mm Reticle: Donut Tube Size: 30mm Weight: 21.7 oz Product no.: 080001408
Not available
469.9 GBP 0 £469.90 *
469.9 469.9 2 GBP

Not available.

Product no.: 080001426

Notify on availability 599.9 GBP
469.9 469.9 2 GBP
Description Specification Customers reviews Accessories

BROWNELLS MPO 1-6X24MM SFP ILLUMINATED LPVO DONUT RETICLE W/30MM MOUNT

Notify on availability

Description:

Experience unparalleled accuracy with the Brownells MPO 1-6x24mm SFP Illuminated Rifle Scope.

The Brownells 1-6x24 Match Precision Optic with Illuminated Donut Reticle offers an uncluttered reticle design, facilitating rapid target acquisition and swift shooting. Drawing inspiration from the original reticle featured on the Austrian StG77, the simplistic “Donut” reticle provides essential ranging capabilities while maintaining ease of use.

Key Features:

  • Illuminated Second Focal Plane "Donut" Reticle: Designed for quick target alignment.
  • Fully Multicoated Lenses: Enhance light transmission and clarity.
  • 30mm Main Tube: Compatible with a variety of mounts.

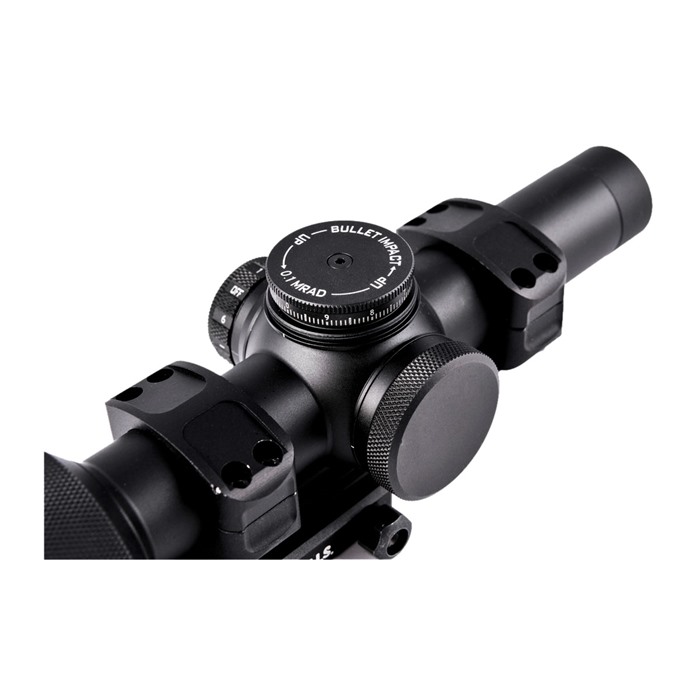

  • Capped Elevation and Windage Turrets: Prevent unintended adjustments.
  • Made in Japan: Quality craftsmanship guaranteed.

The simple Donut ring allows your eye to naturally centre the target, ensuring fast alignment, while the addition of horizontal bars makes initial scope leveling straightforward and provides visual indicators of the rifle’s cant during use. The reticle is illuminated red by a single CR2032 battery and features 6 brightness settings, including an off position between each setting.

This 1-6x24 Rifle Scope is meticulously assembled for Brownells in Japan, utilising glass with multicoated lenses and a glass etched reticle. The precise elevation and windage mechanisms adjust in 0.1 MIL increments and offer a generous 40 MILs of adjustment range each. With a forgiving eye relief of 3.5 inches and an accommodating eye box, this scope allows for firing from various shooting positions.

The Second Focal Plane configuration with 1-6x magnification ensures an easily acquired reticle at any magnification level. Ranging with the Donut reticle can be performed at 1x, as the original StG77 reticle ranging was also executed at low magnification (1.5x).



Restrictions

This product is only available for sale in United Kingdom

Top takeaways

  1. The Brownells MPO 1-6x24mm SFP Rifle Scope features an illuminated "Donut" reticle for quick target acquisition and simple ranging, with a forgiving 3.5-inch eye relief.
  2. Built in Japan, this scope has fully multicoated lenses, capped turrets with 0.1 MIL click adjustments, and a durable 30mm main tube.
  3. The scope offers a versatile magnification range from 1x to 6x on a Second Focal Plane, making the reticle easy to use at any level of zoom.

Attributes

  • Battery:
    CR-2032
  • Click Value:
    0.1 MIL
  • Click Value: 0.1 MIL
  • Eye Relief:
    3.50''
  • Finish:
    Black
  • Focal Plane:
    Second
  • Illumination:
    Yes
  • Length:
    9.3''
  • Max Magnification:
    6x
  • Min. Magnification:
    1x
  • Model Number:
    Match Precision Optics
  • Objective Size:
    24mm
  • Reticle:
    Donut
  • Tube Size:
    30mm
  • Weight:
    29.2 oz
  • Delivery weight: 1.383kg
  • Shipping height: 89mm
  • Shipping width: 102mm
  • Shipping length: 343mm
  • UPC: 050806011656

Item details

This product contains a battery.
US export classification: 0A504.a
