AREA 419 ZERO HEADSPACE AND OGIVE MEASUREMENT GAUGE KIT
Support
Achieve precise measurements with the Area 419 Zero Headspace and Ogive Measurement Gauge Kit, featuring consistent headspace gauges and custom bullet ogive tools.
AREA 419 ZERO HEADSPACE AND OGIVE MEASUREMENT GAUGE KIT
344.9
344.9
1
GBP
344.9
GBP
£344.90
Prices inclusive of duty & VAT.
Product no.: 430107282
Mfr. No.: 419-OGIVE-KIT
810080181786 As long as anyone at Area 419 have been reloading, they have been using comparators. These are simple items meant to let them measure seating depth and headspace between cases. If you reload alone, always use the same components and calibers, and don’t tinker around, these are a solid option. Area 419 like to use different components, they like to compare, and Area 419 want to know that the measurements they are taking are a little more than relative. This is why Area 419 are making their ZERO measurement gauges. GENERAL CONSTRUCTION To make these measurement gauges, they all needed to be the same. Exactly the same. And they had to stay that way. All of these parts are made on their world-class DMG Mori lathes, from American steel, cut with reamers for consistency, and then nitrided to help them last a lifetime. HEADSPACE GAUGES Headspace gauges don’t need the be complicated, they just need to be correct, and exceedingly consistent. This led to a traditional datum-style gauge – as Area 419 believe it provides the most true measurement – cut with a reamer to keep their diameter, face, and radius as consistent as possible. Again, this is in an effort to allow you to compare your measurements with someone from North Dakota or Nevada or the Netherlands, knowing that the numbers on your caliper mean something. Included Sizes: .330, .350, .375, .400, .420, Rimfire BULLET OGIVE This one is a little more intricate. While most ogive comparators work on a standard datum measurement, like their headspace gauges, Area 419 thought there was a much more appropriate way to measure the ogive of a bullet. they have designed and are using custom tooling that allows to replicate the lead area of your barrel’s chamber (if it has the standard 1.5* lead). The goal here is to allow you to measure seating depth and jump the only way that it matters, and that’s relative to your chamber. This will reduce the large swings in gauge readings from one projectile class to another, allowing you to see what really matters. Included Bullet Calibers: 22cal, 6mm, 6.5mm, 7mm, 30cal, 338cal HEIGHT GAUGE When building this kit, Area 419 also decided they wanted you to have the option to use it like a tool they use every day in the shop – a height gauge. This heavy steel base, with rubber bottom, will keep your measuring tool in place, clicking the tool in with magnets, and add to the flow of your reloading QC process. NOTE: This base is a separate item, and is not included in the kit unless specifically called out. NOTE: THESE KITS WERE DESIGNED TO WORK WITH MITUTOYO CALIPERS, BUT DO NOT INCLUDE THEM. OTHER CALIPERS MAY FIT, BUT ARE NOT GUARANTEED.
Backorderable
Backorderable, delivery time approx. 4-12 weeks from the USA warehouse.
No charges until we ship
No charge:
Your credit card will not be charged when you place your order.
No commitments:
You are under no obligation until the goods are shipped. You can cancel your order at any time before shipping - free of charge.
Not until shipping:
Your credit card will only be charged once we ship your order. Not before.
Your credit card will not be charged when you place your order.
No commitments:
You are under no obligation until the goods are shipped. You can cancel your order at any time before shipping - free of charge.
Not until shipping:
Your credit card will only be charged once we ship your order. Not before.
- Precision measurement with DMG Mori lathes
- Consistent headspace gauges
- Custom ogive comparators
344.9
344.9
1
GBP
Description
Specification
Customers reviews
Accessories
AREA 419 ZERO HEADSPACE AND OGIVE MEASUREMENT GAUGE KIT
344.9
GBP
£344.90
Prices inclusive of duty & VAT.
Description:
Precision Measurement for Reloading Enthusiasts

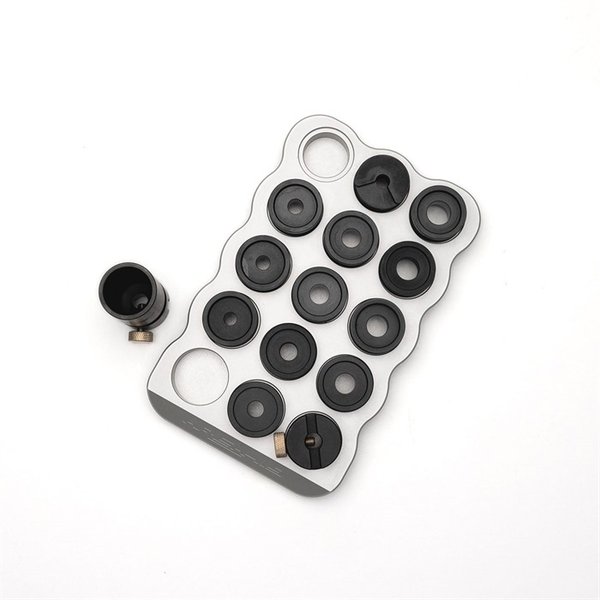

Introducing the ZERO HEADSPACE AND OGIVE MEASUREMENT GAUGE KIT from AREA 419, designed for those who demand accuracy and consistency in their reloading process.
Product Overview
At Area 419, the journey of reloading has always involved the use of comparators. These essential tools enable precise measurement of seating depth and headspace between cases. For those who reload consistently with the same components and calibers, these gauges serve as a reliable choice. However, for those who enjoy experimenting with different components and need to ensure their measurements are precise, the ZERO measurement gauges are the answer.
General Construction
Each measurement gauge in this kit is manufactured to be identical, ensuring consistency across the board. Crafted on world-class DMG Mori lathes from American steel, these gauges are cut with reamers for uniformity and nitrided for long-lasting durability.
Headspace Gauges
Headspace gauges are designed to be straightforward yet highly accurate. Area 419 employs a traditional datum-style gauge, which they believe delivers the most accurate measurements. Each gauge is cut with a reamer to maintain consistent diameter, face, and radius, allowing users to compare measurements with confidence, regardless of location.
- Included Sizes: .330, .350, .375, .400, .420, Rimfire
Bullet Ogive
The bullet ogive measurement is more intricate. While most ogive comparators rely on standard datum measurements, Area 419 has developed custom tooling to replicate the lead area of your barrel’s chamber (if it has the standard 1.5* lead). This design allows you to accurately measure seating depth and jump in relation to your chamber, minimizing discrepancies across different projectile classes.
- Included Bullet Calibers: 22cal, 6mm, 6.5mm, 7mm, 30cal, 338cal
Height Gauge
In addition to the measurement gauges, Area 419 has included a height gauge option, designed to function like a tool used daily in the shop. The sturdy steel base, equipped with a rubber bottom, ensures stability during measurements and incorporates magnets to secure the tool in place, enhancing the flow of your reloading QC process.
Note: The height gauge base is a separate item and is not included in the kit unless specifically stated.
Important: These kits are designed to work with Mitutoyo calipers but do not include them. Other calipers may fit, but compatibility is not guaranteed.
Attributes
- Delivery weight: 1.814kg
- Shipping height: 51mm
- Shipping width: 102mm
- Shipping length: 178mm
- UPC: 810080181786
Item details
Made in USA
