AREA 419 ARCALOCK ARCA SWISS 17S CLAMP
Support
Enhance your shooting stability with the AREA 419 Arcalock Clamp, featuring a two-stage screw design for rapid adjustments and secure locking on Atlas & Harris bipods.
-8 %
AREA 419 ARCALOCK ARCA SWISS 17S CLAMP
- Specifications:
- Attachment: Adapter Mount
109.9
109.9
1
GBP
-8 %
MSRP
£119.90
109.9
GBP
£109.90
Prices inclusive of duty & VAT.
Product no.: 100032678
Mfr. No.: 419-ALK-CLAMP
853675008860 The Area 419 Arcalock Clamp for the Atlas and Harris Bipods feature a proprietary two-stage screw design. This clamp works on all standard Arca/1.5” Dovetail Rails. The clamping screw features two different thread pitches. The coarse 16tpi is used when no tension is on clamp, allowing rapid movement of the clamp vs others on the market. With high speed comes low torque though, so to counteract this as soon as the clamp sees tension it will switch to the 32tpi threads in the knob to give you extra torque when not using on an ARCALOCK rail. Clamp and knob machined in house from 6061-T6 Aluminum Screw is turned from 303 Stainless Steel Type III Hardcoat Black anodized clamp and Gold anodized knob A 1/4 turn releases the clamp from the detents on the ARCALOCK rail for movement. One turn releases clamp to be removed from rail. The clamp directly bolts to Atlas Bipods using their factory hardware. The barricade stop can either be standalone on the clamp using provided hardware, or sandwiched between an Atlas bipod (Barricade stop does not work with Harris Bipods). The clamp is backwards compatible with standard ARCA rails by removing the two pins, and will still work this way to give you infinite sliding adjustment on the ARCALOCK rail. Moving side of clamp is dovetailed on both sides to prevent tilt.
In stock
1 pcs. in the local warehouse
Delivery time approx. 2-3 days.
No charges until we ship
No charge:
Your credit card will not be charged when you place your order.
No commitments:
You are under no obligation until the goods are shipped. You can cancel your order at any time before shipping - free of charge.
Not until shipping:
Your credit card will only be charged once we ship your order. Not before.
Your credit card will not be charged when you place your order.
No commitments:
You are under no obligation until the goods are shipped. You can cancel your order at any time before shipping - free of charge.
Not until shipping:
Your credit card will only be charged once we ship your order. Not before.
- Two-stage screw design
- Quick clamp adjustment
- Backwards compatible with ARCA
109.9
109.9
1
GBP
Description
Specification
Customers reviews
Accessories
AREA 419 ARCALOCK ARCA SWISS 17S CLAMP
-8 %
MSRP
£119.90
109.9
GBP
£109.90
Prices inclusive of duty & VAT.
Description:
Elevate your shooting experience with the ARCALOCK CLAMP for Atlas and Harris Bipods!
The Area 419 Arcalock Clamp for the Atlas and Harris Bipods features a proprietary two-stage screw design, ensuring precision and stability in your shooting setup.
Key Features:
- Compatible with all standard Arca/1.5” Dovetail Rails.
- Innovative clamping screw with two different thread pitches:
- Coarse 16tpi: Ideal for rapid movement when no tension is applied.
- 32tpi: Engages under tension for enhanced torque when not using an ARCALOCK rail.
- Manufactured in-house from 6061-T6 Aluminum and 303 Stainless Steel.
- Type III Hardcoat Black anodized clamp and Gold anodized knob for durability and style.
- Quick release mechanism: A 1/4 turn releases the clamp from the detents on the ARCALOCK rail.
- One full turn allows for complete removal of the clamp from the rail.
- Directly bolts to Atlas Bipods using factory hardware.
- Versatile barricade stop can be used standalone or sandwiched between an Atlas bipod (note: not compatible with Harris Bipods).

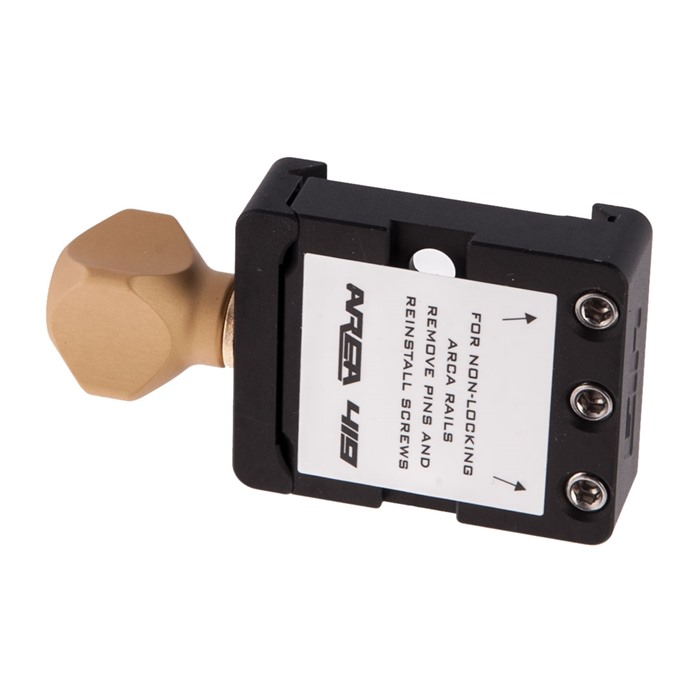

- Backward compatible with standard ARCA rails by removing two pins for infinite sliding adjustment.
- Dovetailed design on both sides of the clamp prevents tilt.
Upgrade your equipment and experience unparalleled performance with the ARCALOCK CLAMP from Area 419, designed specifically for serious shooters.
Attributes
- Attachment:
Adapter Mount
- Delivery weight: 0.125kg
- Shipping height: 43mm
- Shipping width: 81mm
- Shipping length: 145mm
- UPC: 853675008860
Item details
Made in USA
