SHREWD
#4 MUZZLE BRAKE 22 CALIBER

860100425

Description
Ratings (2)

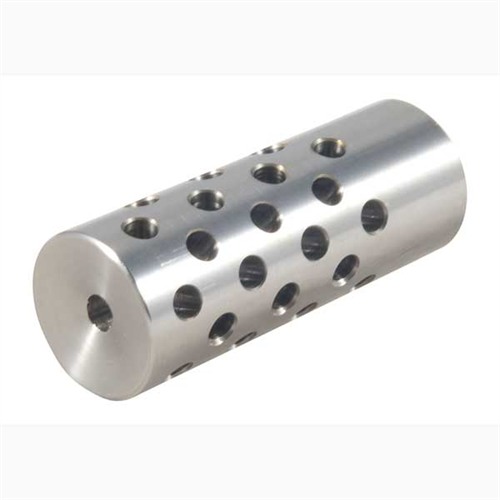

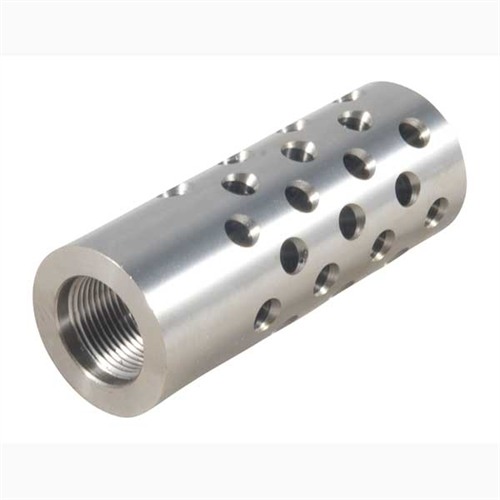

Multi-port brake softens felt recoil and reduces muzzle rise. A single expansion chamber and 42 total ports, 21 on each side, angled 7° forward, provide maximum recoil control. Gunsmithing required. Comes with a .220" (nominal) diameter exit hole that must be opened up to .020" larger than bullet diameter. Can be enlarged to allow bullets up to .44 caliber. Rear exterior of comp can be machined to conform to barrel.

SPECS: 4140 steel, chrome moly (CM), in the white or 416 stainless steel (SS), satin finish. 2-5⁄8" (6.6cm) long. Outside diameter; #4 - 1" (2.5cm), .865" (22mm).

More...

Customer ratings for SHREWD #4 MUZZLE BRAKE 22 CALIBER 5/8-24 CHROME MOLY SILVER

Number of ratings: 2
From brownells.com: 2
Average rating: 5

They really work! (04/05/2011)

Can be machined into a barrel contour. Really does reduce recoil and muzzle jump. My 300WSM shoots like a 243Win with it on. Take it off, and my 18-pound rifle jumps four inches off the bag. Nothing at all wrong or deficient about this product. Have four of them on various other rifles. Love them. Just ordered another...

excellent addition to any barrel (02/06/2014)

I use this brake fitted to a 6.5 Grendel bull barrel (20"). The brake can be turned to match the barrel diameter without any problems, but you must adjust cutting speed in your lathe for the necessary interrupted cuts.

I first threaded a short segment to fit the brake and used this to hold the brake in the 3-jaw chuck with the tailstock live center in the brake muzzle. The brake can then be turned to match the barrel diameter. There is plenty of metal to do this operation.

The bore was then drilled to .020 over (N-letter drill for 6.5mm, as I recall). The brake did not fit my pre-threaded barrel muzzle flush. Instead of fitting a crush washer I machined a spacer to match the brake and barrel diameter by using the holding fixture that I machined. I inserted a steel washer behind the brake and then turned the washer to the diameter of the finished brake.

To install the brake so that it can be removed yet will not loosen, I used Permatex non-hardenening sealant--the kind you use for automotive water pump gaskets--to seal the barrel threads.

This is a nice brake that is a lot less work than machining a complete one out of a piece of stock. All my work was done using a 6" Atlas lathe and standard tooling.

Read 2 more ratings on brownells.com

69.9 69.9 2 GBP

Product no.: 860100425
SHREWD #4 MUZZLE BRAKE 22 CALIBER 5/8-24 CHROME MOLY SILVER
Mfr Part: NONE Multi-port brake softens felt recoil and reduces muzzle rise. A single expansion chamber and 42 total ports, 21 on each side, angled 7° forward, provide maximum recoil control. Gunsmithing required. Comes with a .220" (nominal) diameter exit hole that must be opened up to .020" larger than bullet diameter. Can be enlarged to allow bullets up to .44 caliber. Rear exterior of comp can be machined to conform to barrel.

69.9 GBP 8 £69.90 *

Delivery time approx. 7-14 days.
8 pcs. in the USA warehouse

Specs: Finish: Silver Make: Universal Rifles Material: Chrome Moly Size: 1 Threads: 5/8-24

Add to shopping list

Ask question

Details

Add to shopping list

Ask question

Top takeaways

The Shrewd #4 Muzzle Brake for .22 caliber features a multi-port design with a single expansion chamber and 42 ports to effectively reduce recoil and muzzle rise.
Installation requires gunsmithing, and the brake comes with a .220" exit hole that can be enlarged to accommodate bullets up to .44 caliber.
Constructed from 4140 chrome moly steel with a silver finish, it measures 2-5/8" long with a 1" outside diameter and is designed for universal rifles with 5/8-24 threads.

Attributes

Finish: Silver Make: Universal Rifles Material: Chrome Moly Size: 1 Threads: 5/8-24 Delivery weight: 0.181kg

Item details

Made in USA

Product no.: 860101425
SHREWD #4 MUZZLE BRAKE 22 CALIBER 5/8-24 SS SILVER
Mfr Part: NONE Multi-port brake softens felt recoil and reduces muzzle rise. A single expansion chamber and 42 total ports, 21 on each side, angled 7° forward, provide maximum recoil control. Gunsmithing required. Comes with a .220" (nominal) diameter exit hole that must be opened up to .020" larger than bullet diameter. Can be enlarged to allow bullets up to .44 caliber. Rear exterior of comp can be machined to conform to barrel.

69.9 GBP 9 £69.90 *

Delivery time approx. 7-14 days.
9 pcs. in the USA warehouse

Specs: Finish: Stainless Steel Make: Universal Rifles Size: 1 Threads: 5/8-24
