For Frozen Screw Removal And Long, Long Life
If none of the common methods for removing a frozen screw work, and drilling is in order, these carbide center drills should be used to center and "start" the hole. With the spindle at fairly high speed, bring the center drill down to the screw head and adjust position until centered in the screw. Apply pressure and cut until center hole is deep enough to allow the proper undersized, regular drill bit to start cutting without catching on the screw head slot. Better for drilling broken taps too, for they will cut center holes in even the hardest ones. And, because of the large body mass of the tool relative to the small drill diameter, it is very sturdy and rigid. Will not flex or walk.
SPECS: #1, .125 body/.0468 drill; #2, .187 body/.0781 drill; #3, .250 body/.1093 drill; #4, .312 body/.1250 drill.
38.9 79.9 4 GBP
Product no.: 317402002

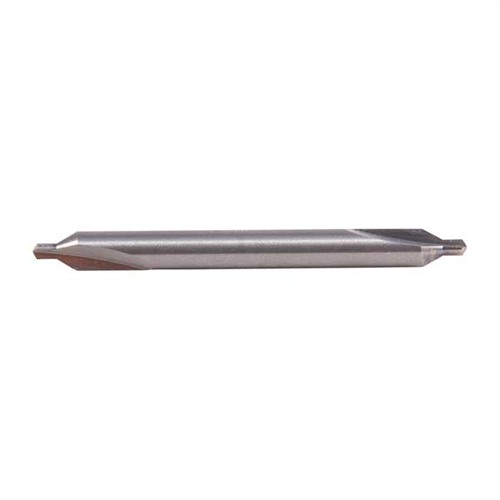

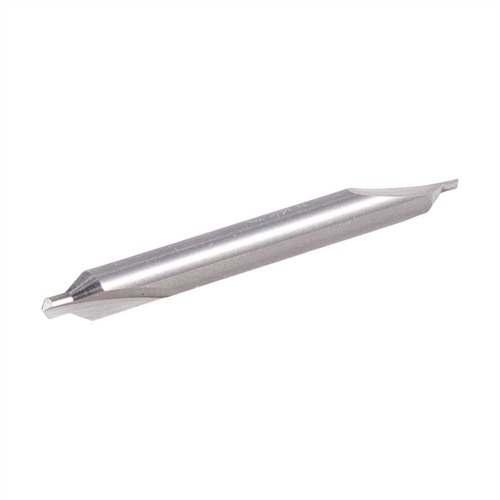

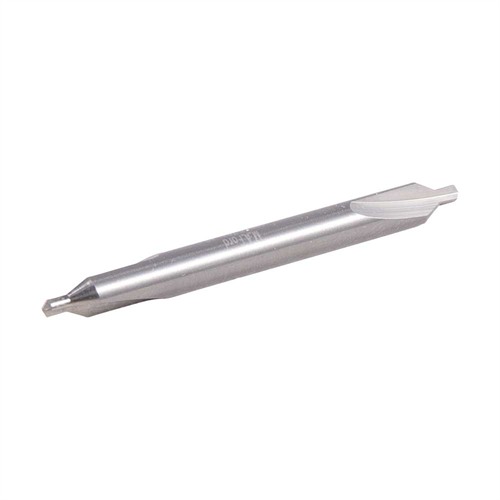

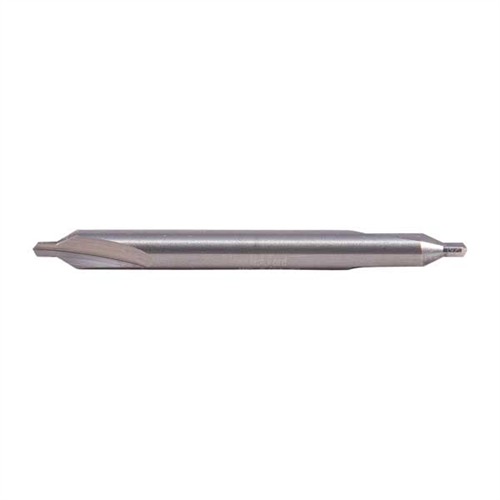

BROWNELLS #2 CARBIDE CENTER DRILL 5/64"
Mfr Part: 40207810 697604402332 If none of the common methods for removing a frozen screw work, and drilling is in order, these carbide center drills should be used to center and "start" the hole. With the spindle at fairly high speed, bring the center drill down to the screw head and adjust position until centered in the screw. Apply pressure and cut until center hole is deep enough to allow the proper undersized, regular drill bit to start cutting without catching on the screw head slot. Better for drilling broken taps too, for they will cut center holes in even the hardest ones. And, because of the large body mass of the tool relative to the small drill diameter, it is very sturdy and rigid. Will not flex or walk.
59.9 GBP 8 £59.90 *
Delivery time approx. 7-14 days.
8 pcs. in the USA warehouse
Specs: Style: Center Carbides

Top takeaways

  1. The BROWNELLS #2 CARBIDE CENTER DRILL is designed to center and start holes for removing frozen screws or broken taps, even in the hardest materials.
  2. It features a large body mass relative to the drill diameter, providing sturdiness, rigidity, and preventing flexing or walking.
  3. The drill specifications for #2 are a .187 inch body with a .0781 inch drill size, suitable for creating a centered pilot hole for subsequent drilling.

Attributes

Style: Center Carbides Delivery weight: 0.009kg Shipping width: 83mm Shipping length: 146mm UPC : 697604402332

Item details

Made in USA



Product no.: 317402001
BROWNELLS #1 CARBIDE CENTER DRILL 3/64"
Mfr Part: 40204680 697604402219 If none of the common methods for removing a frozen screw work, and drilling is in order, these carbide center drills should be used to center and "start" the hole. With the spindle at fairly high speed, bring the center drill down to the screw head and adjust position until centered in the screw. Apply pressure and cut until center hole is deep enough to allow the proper undersized, regular drill bit to start cutting without catching on the screw head slot. Better for drilling broken taps too, for they will cut center holes in even the hardest ones. And, because of the large body mass of the tool relative to the small drill diameter, it is very sturdy and rigid. Will not flex or walk.
38.9 GBP 7 £38.90 *
Delivery time approx. 7-14 days.
7 pcs. in the USA warehouse
Specs: Style: Center Carbides
Product no.: 317402004
BROWNELLS #4 CARBIDE CENTER DRILL 1/8"
Mfr Part: 40212500 697604402530 If none of the common methods for removing a frozen screw work, and drilling is in order, these carbide center drills should be used to center and "start" the hole. With the spindle at fairly high speed, bring the center drill down to the screw head and adjust position until centered in the screw. Apply pressure and cut until center hole is deep enough to allow the proper undersized, regular drill bit to start cutting without catching on the screw head slot. Better for drilling broken taps too, for they will cut center holes in even the hardest ones. And, because of the large body mass of the tool relative to the small drill diameter, it is very sturdy and rigid. Will not flex or walk.
79.9 GBP 2 £79.90 *
Delivery time approx. 7-14 days.
2 pcs. in the USA warehouse
Specs: Style: Center Carbides
Product no.: 317402003
BROWNELLS #3 CARBIDE CENTER DRILL 7/64"
Mfr Part: 40210930 697604402455 If none of the common methods for removing a frozen screw work, and drilling is in order, these carbide center drills should be used to center and "start" the hole. With the spindle at fairly high speed, bring the center drill down to the screw head and adjust position until centered in the screw. Apply pressure and cut until center hole is deep enough to allow the proper undersized, regular drill bit to start cutting without catching on the screw head slot. Better for drilling broken taps too, for they will cut center holes in even the hardest ones. And, because of the large body mass of the tool relative to the small drill diameter, it is very sturdy and rigid. Will not flex or walk.
59.9 GBP 0 £59.90 *
Backordered, delivery time approx. 4-12 weeks from the USA warehouse.
Specs: Style: Center Carbides

Discover the BROWNELLS #2 CARBIDE CENTER DRILL 5/64" for precise drilling! Ideal for frozen screws and tough materials. 🔧 Get yours now!

For Frozen Screw Removal And Long, Long Life
If none of the common methods for removing a frozen screw work, and drilling is in order, these carbide center drills should be used to center and "start" the hole. With the spindle at fairly high speed, bring the center drill down to the screw head and adjust position until centered in the screw. Apply pressure and cut until center hole is deep enough to allow the proper undersized, regular drill bit to start cutting without catching on the screw head slot. Better for drilling broken taps too, for they will cut center holes in even the hardest ones. And, because of the large body mass of the tool relative to the small drill diameter, it is very sturdy and rigid. Will not flex or walk.
SPECS: #1, .125 body/.0468 drill; #2, .187 body/.0781 drill; #3, .250 body/.1093 drill; #4, .312 body/.1250 drill.
