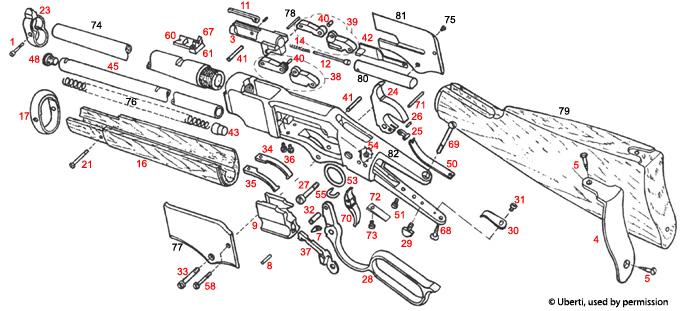

Uberti® 1866 Rimfire Schematic - Discover the Intricacies of Your Rifle
This page provides a comprehensive schematic diagram for the Uberti® 1866 Rimfire rifle, an essential resource for enthusiasts and gunsmiths alike. Here, you will find detailed illustrations that highlight the key components and their interconnections, facilitating a deeper understanding of the rifle's mechanics. Whether you're performing maintenance, repairs, or simply exploring the design, this schematic serves as a valuable tool. Access the information you need to ensure your Uberti® 1866 Rimfire operates at its best, showcasing the craftsmanship and engineering behind this iconic firearm.Uberti® 1866 Rimfire
Uberti® 1866 Rimfire Schematic
Uberti® 1866 Rimfire Parts
