Uberti® 1873 Cattleman S.A. Flattop Target Schematic - Precision at Your Fingertips

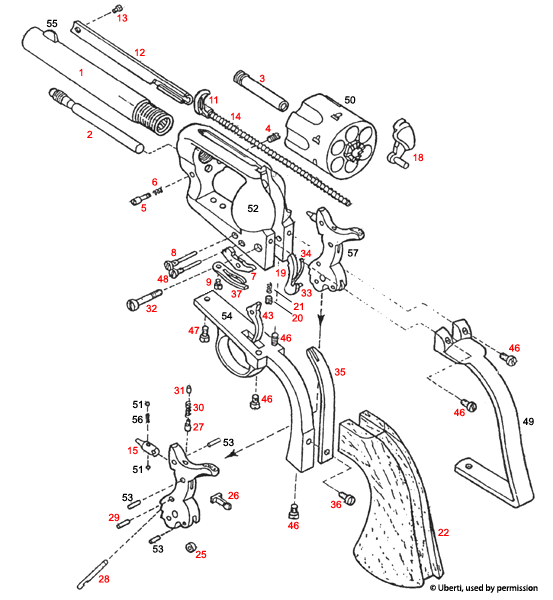

Explore the detailed schematic for the Uberti® 1873 Cattleman S.A. Flattop Target, designed for enthusiasts and gunsmiths alike. This comprehensive diagram provides a clear visual representation of the revolver's components, making it easier to understand its assembly and functionality. Whether you are looking to repair, maintain, or simply admire the craftsmanship of this iconic firearm, our schematic serves as an essential tool. With labeled parts and precise illustrations, you can confidently navigate the inner workings of your Uberti revolver.
Click on a red number to view more information on that item and to add that factory part to your shopping cart. Select "SKU Listing" to see all stock numbers for this schematic.
