Ruger® No. 1RSI Schematic - Precision at Your Fingertips
Discover the detailed Ruger® No. 1RSI Schematic, a vital resource for enthusiasts and gunsmiths alike. This page provides a comprehensive breakdown of the Ruger® No. 1RSI rifle, showcasing its intricate components and assembly. With clear illustrations and part numbers, you can easily identify and order replacement parts or perform maintenance on your firearm. Whether you're a seasoned expert or a novice, this schematic serves as an essential guide to understanding the inner workings of the Ruger® No. 1RSI. Equip yourself with the knowledge to ensure optimal performance and longevity of your rifle.
Ruger® No. 1RSI
Ruger® No. 1RSI Schematic

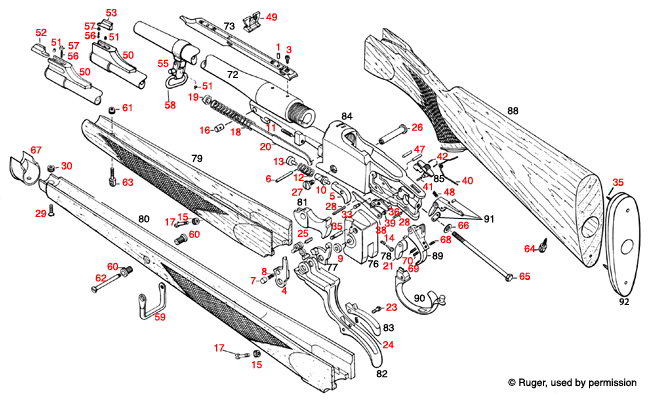

Click on a red number to view more information on that item and to add that factory part to your shopping cart. Select "SKU Listing" to see all stock numbers for this schematic.
