Ruger® Model 10/22 T Blue & S/S Schematic - Your Guide to Precision and Performance

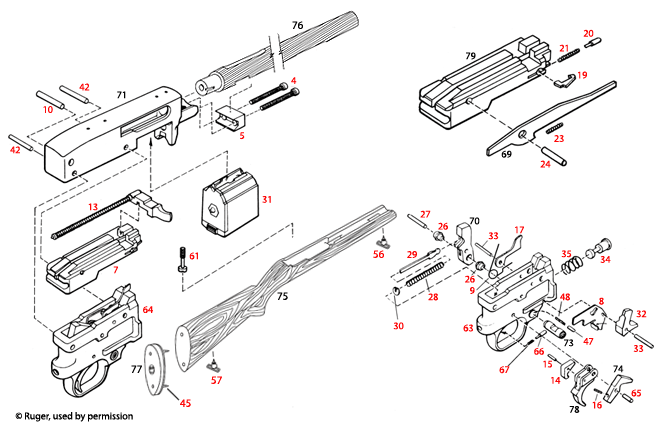

This page provides a comprehensive schematic for the Ruger® Model 10/22 T in both blue and stainless steel finishes. Here, you will find detailed diagrams that illustrate the various components and assembly of this iconic rifle. Whether you are a seasoned gunsmith or a novice enthusiast, these schematics are invaluable for understanding the intricate workings of your firearm. Each diagram is designed to assist in maintenance, repairs, and upgrades, ensuring that your Ruger® Model 10/22 T remains in optimal condition. Explore the layout and enhance your knowledge of this remarkable rifle.Ruger® Model 10/22 T Blue & S/S
Ruger® Model 10/22 T Blue & S/S Schematic
Ruger® Model 10/22 T Blue & S/S Parts
