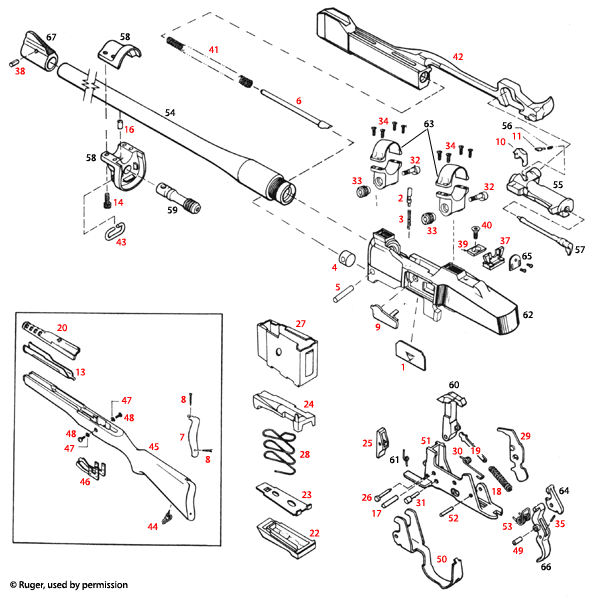

Ruger® Mini-30 Schematic - Precision at Your Fingertips
Welcome to the Ruger® Mini-30 Schematic page! Here, you will find detailed schematics that provide an in-depth look at the components and assembly of the Ruger® Mini-30 rifle. This schematic is essential for enthusiasts and armorer alike, offering clear illustrations that aid in understanding the firearm's mechanics. Whether you are performing maintenance, repairs, or simply exploring the design, this resource is invaluable. Navigate through the various sections to discover parts, assembly instructions, and more. Enhance your knowledge and ensure your Mini-30 operates at its best with our comprehensive schematic guide.Ruger® Mini-30
Ruger® Mini-30 Schematic
Ruger® Mini-30 Parts
