Ruger® New Model Blackhawk Schematic - Discover Every Detail
Welcome to the comprehensive resource for the Ruger® New Model Blackhawk schematic. This page provides a detailed illustration of the revolver's components, making it an essential tool for both enthusiasts and professionals alike. Here, you can explore the intricate parts of the Blackhawk, ensuring you have the information needed for maintenance and repairs. Whether you are a gunsmith or a passionate owner, our schematic offers clarity and precision, allowing you to understand the assembly and disassembly processes. Utilize this valuable resource to enhance your knowledge and care for your Ruger® New Model Blackhawk.Ruger® New Model Blackhawk

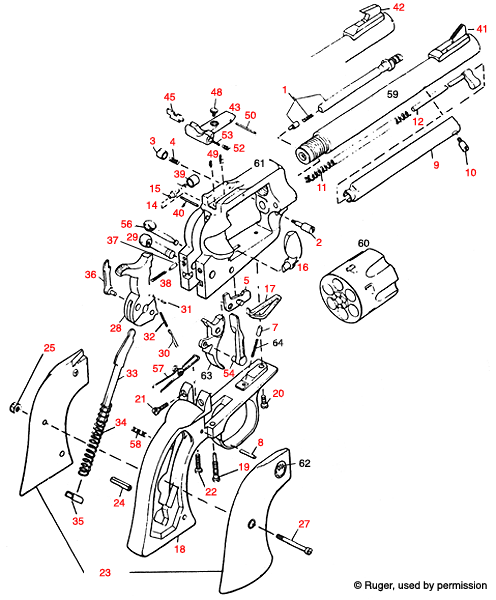

Ruger® New Model Blackhawk Schematic
Ruger® New Model Blackhawk Parts
