Explore detailed diagrams and part listings for the Ruger LCP, providing essential information for assembly, maintenance, and repair of this autoloading pistol.
Ruger® LCP Schematic - Precision in Every Detail
Explore the comprehensive Ruger® LCP Schematic, designed specifically for enthusiasts and armory professionals. This page provides a detailed illustration of the Ruger® LCP, showcasing its intricate components and assembly. Whether you're performing maintenance, repairs, or upgrades, our schematic offers a clear and concise visual guide to assist you. Understanding the layout of your firearm is crucial for ensuring optimal performance and safety. Dive into the specifics of the LCP and enhance your knowledge of this reliable autoloading pistol with our expertly crafted resources.
Ruger® LCP

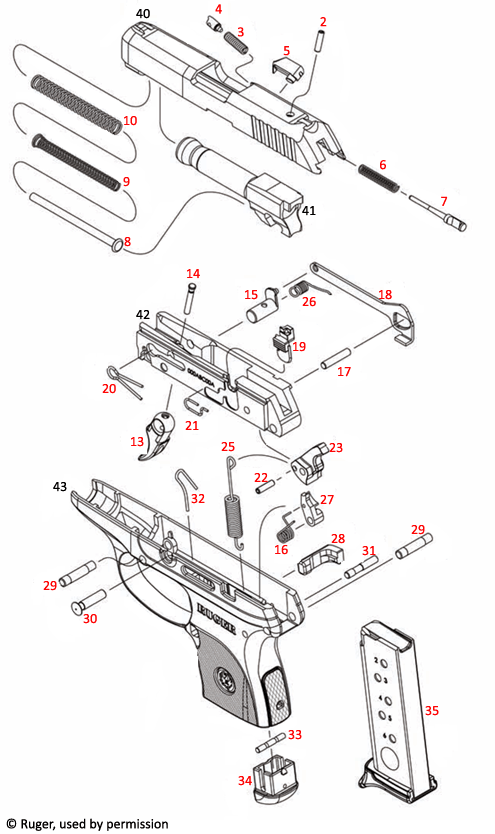

Ruger® LCP Schematic
Click on a red number to view more information on that item and to add that factory part to your shopping cart. Select "SKU Listing" to see all stock numbers for this schematic.
