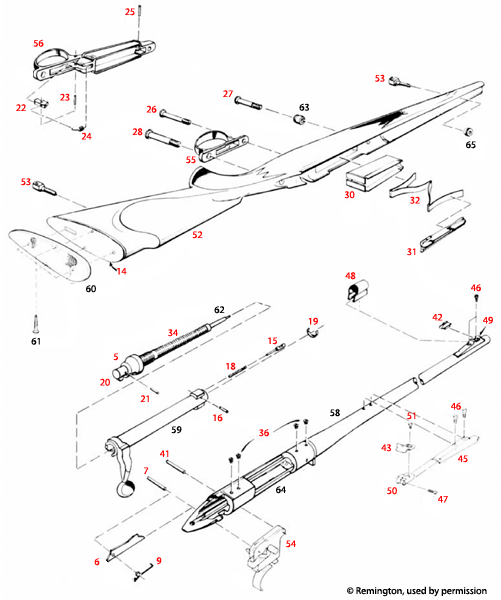

Remington® Model 700 BDL Schematic - Precision in Every Detail
This page provides an in-depth schematic for the iconic Remington® Model 700 BDL, a rifle renowned for its accuracy and reliability. Here, you will find detailed diagrams that illustrate the various components of the rifle, making it an essential resource for both enthusiasts and professionals. The schematic includes labeled parts, which facilitate maintenance and repair processes. Whether you are looking to understand the assembly, troubleshoot issues, or simply appreciate the engineering behind this classic firearm, this page serves as your comprehensive guide. Explore the intricacies of the Model 700 BDL and enhance your knowledge today.Remington® Model 700 BDL
Remington® Model 700 BDL Schematic
Remington® Model 700 BDL Parts
