Beretta® ARX 100 Schematic - Your Guide to Precision
Explore the intricacies of the Beretta® ARX 100 with our detailed schematic, designed to provide enthusiasts and professionals alike with a comprehensive understanding of this remarkable rifle. This page offers an in-depth look at the various components and their configurations, ensuring that you can easily identify parts for maintenance or upgrades. Whether you're a seasoned gunsmith or a beginner, our schematic serves as an invaluable resource. Navigate through the detailed illustrations and enhance your knowledge of the Beretta® ARX 100, ensuring optimal performance and longevity of your firearm.
Beretta® ARX 100

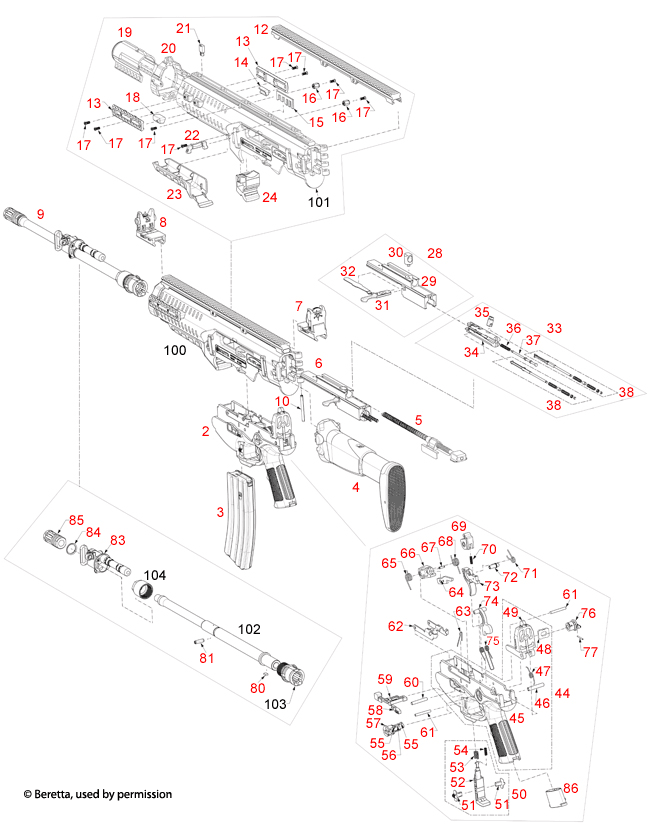

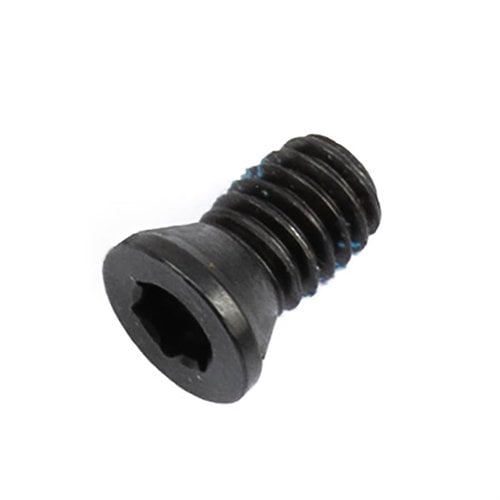

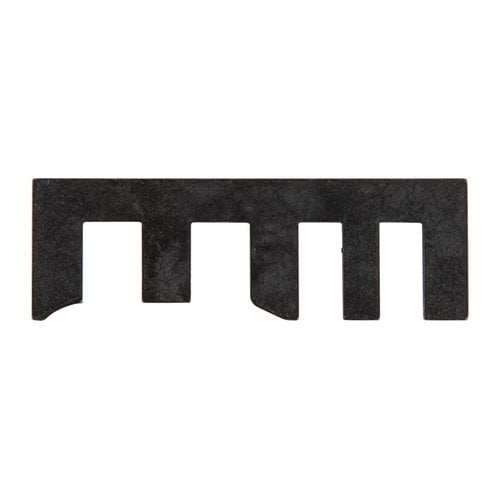

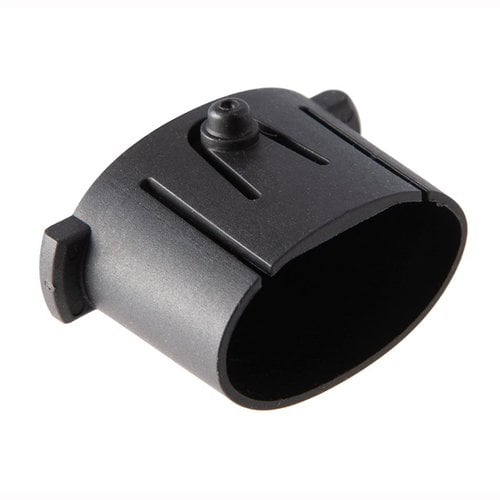

Beretta® ARX 100 Schematic
Click on a red number to view more information on that item and to add that factory part to your shopping cart. Select "SKU Listing" to see all stock numbers for this schematic.
