MIDWEST INDUSTRIES
QUICK DETACH SCOPE MOUNTS

816537013839 100018510

Description
Ratings (4)

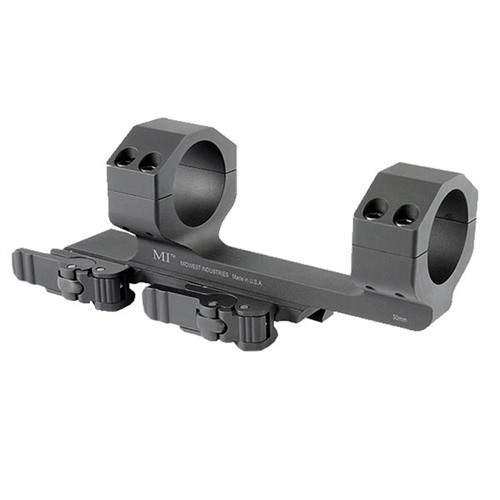

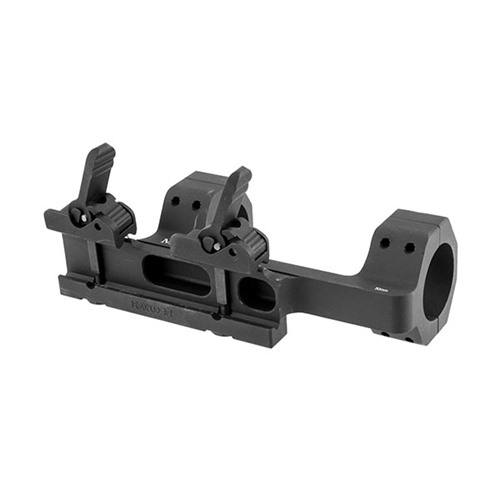

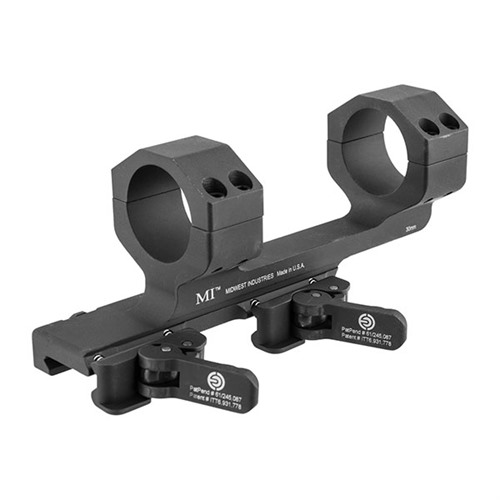

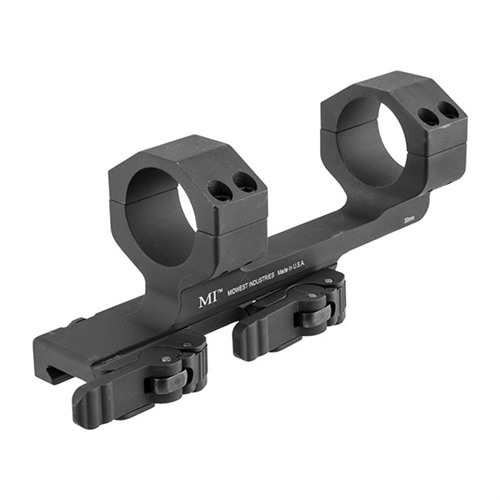

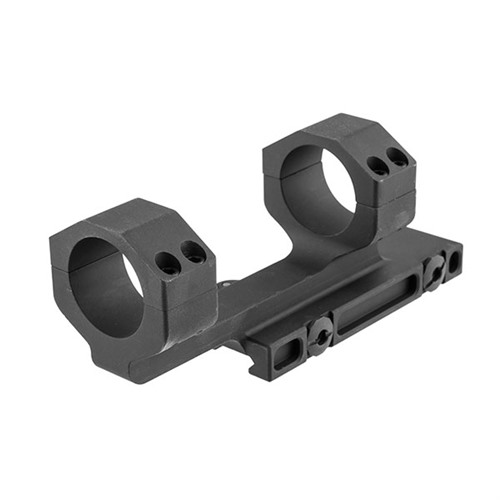

QD Scope Mounts Midwest Industries incorporates on of the smoothest functioning QD levers on the market. Extremely smooth in operation with a multi-facetted adjustment nut to get the exact tension required without damaging the rail surface. Fully adjustable with no tools. Weighing in at 8.4 oz, these mounts are precision machined for optimum return to zero performance and reliability. Hard coat anodized 6061 Aluminum for a lifetime of service. Works with scopes up to a56mm objective lens. Works with scopes up to a 56mm Objective Weight: 8.4 oz Overall Length: 5.875" Width of Rings: .85" Distance between rings: 2.8" Offset from the first ring: 1.4" Height- top of rail to center line of ring: 1.5"

More...

Customer ratings for MIDWEST INDUSTRIES 30MM 1.5" 0 MOA QD CANTILEVER MOUNT, BLACK

Number of ratings: 4
From brownells.com: 4
Average rating: 3.3

Disappointed (10/11/2015)

The concept is great but execution is lacking. I mounted this base to a Ruger 7.62 semi-auto of known accuracy. I like the lockup and expect it to be reasonable about return to zero after I fix the problems with the rings. I did the first test and the scope, a Leupold 2.5-8 Mark 4 kept slipping forward when I shot the rifle. I torqued the screws as specified so rechecked. Then I tightened them more. The scope still slipped under recoil. At home I examined the rings and found the front ring is only contacting the scope tube at the rear of the ring. The rear ring when torqued does not grip the scope at all. I can turn the scope in the rear ring with the front ring removed. I'm going to lap the rings tomorrow and mill about .010 off the bottom flats of the rings and that should cure the problem. My issue is rings costing a premium price should offer good quality control.

Follow up on previous review (13/11/2015)

I'm writing a follow-up to my previous review. I lapped the rings as I described previously and then had to mill ,020 off the flats of the rings to get a good grip on the scope. I noticed the bottom half of the rings is a casting and not quite flat. It may be .010 or so out. After fixing the rings the scope no longer slipped. I tested removing and replacing the scope on the rifle between shoots to test return to zero. That appears to stay within 1/2 a minute which I consider good. I probably would not have noticed any problem if I mounted it on a .223 however the recoil of the 7.62 brought the issue to light. Midwest Industries hopefully is aware that there may be a problem and will fix it. Anyone can fix this issue with a file and stone if they don't have access to a mill.

Chuck In Anchorage

Update Number 2 (20/11/2015)

I wanted to follow up on the 2 previous reviews. I notified Midwest about the issue I had and they got back to me almost immediately. They are looking into the problem. I suspect they will have it resolved before this review makes the website. I'm impressed with their response and I have no reservations about recommending this mount. I think it's just one of those things that occasionally happens. I know Brownells would stand behind it if I decided to return the mount. I happen to like it and fixed the problem myself.

4+ - Problem is packaging (11/07/2016)

This mount is fantastic and precise! 4 screws on each arch makes sure the scope stays tight. The QD levers are easy to operate and secure the mount without marring the AR top rail.

I just mounted it tonight, but once I zero the scope and then remove and put it back on, it looks like it should hold zero well, but that is yet to be determined.

My only complaint is the packaging. Take a look at the pictures. Because the mount can shift around in the package, it actually scraped off plastic on the top and sides so that I originally thought the scope was damaged and used when I took it out of the package. I was able to wipe off all the white plastic, but the mount is still all scratched up. Now, this is a 3-gun mount for my 1-4x scope and it will take a beating, so it will end up scratched anyway, but when you pay $180 for a new mount, you want it to start clean.

<img width="500" src='/userdocs/reviewimages/25412b07-9ec5-424f-b283-5c6c41741d3a.jpg' alt=''>

<img width="500" src='/userdocs/reviewimages/43b4364b-d15a-433f-b02a-1da96c513154.jpg' alt=''>

<img width="500" src='/userdocs/reviewimages/f5103e74-d5a2-40de-a728-ca89ff278b8f.jpg' alt=''>

Read 4 more ratings on brownells.com

259.9 264.9 3 GBP

Product no.: 100018510
MIDWEST INDUSTRIES 30MM 1.5" 0 MOA QD CANTILEVER MOUNT, BLACK
Mfr Part: MIQD30SM 816537013839 QD Scope Mounts Midwest Industries incorporates on of the smoothest functioning QD levers on the market. Extremely smooth in operation with a multi-facetted adjustment nut to get the exact tension required without damaging the rail surface. Fully adjustable with no tools. Weighing in at 8.4 oz, these mounts are precision machined for optimum return to zero performance and reliability. Hard coat anodized 6061 Aluminum for a lifetime of service. Works with scopes up to a56mm objective lens. Works with scopes up to a 56mm Objective Weight: 8.4 oz Overall Length: 5.875" Width of Rings: .85" Distance between rings: 2.8" Offset from the first ring: 1.4" Height- top of rail to center line of ring: 1.5"

259.9 GBP 5 £259.90 *

Delivery time approx. 7-14 days.
5 pcs. in the USA warehouse

Specs: Elevation: 0 MOA Finish: Matte Black Height: 1.5'' Scope Tube Diameter: 30mm Style: Picatinny

Add to shopping list

Ask question

Details

Add to shopping list

Ask question

Top takeaways

The mount features a smooth-operating QD lever and a multi-faceted adjustment nut for precise tension without rail damage.
Precision machined from hard coat anodized 6061 Aluminum, it ensures optimal return to zero performance and durability.
Compatible with 30mm scope tubes and up to a 56mm objective lens, the mount has a height of 1.5" from the rail to the center line of the ring.

Attributes

Elevation: 0 MOA Finish: Matte Black Height: 1.5'' Scope Tube Diameter: 30mm Style: Picatinny Delivery weight: 0.318kg

Item details

Made in USA

Product no.: 100018509
MIDWEST INDUSTRIES 1" 1.5" 0 MOA QD CANTILEVER MOUNT, BLACK
Mfr Part: MIQD1SM 816537018872 QD Scope Mounts Midwest Industries incorporates on of the smoothest functioning QD levers on the market. Extremely smooth in operation with a multi-facetted adjustment nut to get the exact tension required without damaging the rail surface. Fully adjustable with no tools. Weighing in at 8.4 oz, these mounts are precision machined for optimum return to zero performance and reliability. Hard coat anodized 6061 Aluminum for a lifetime of service. Works with scopes up to a56mm objective lens. Works with scopes up to a 56mm Objective Weight: 8.4 oz Overall Length: 5.875" Width of Rings: .85" Distance between rings: 2.8" Offset from the first ring: 1.4" Height- top of rail to center line of ring: 1.5"

264.9 GBP 6 £264.90 *

Delivery time approx. 7-14 days.
6 pcs. in the USA warehouse

Specs: Elevation: 0 MOA Finish: Matte Black Height: 1.5'' Scope Tube Diameter: 1'' Style: Picatinny

Add to shopping list

Ask question

Details

Add to shopping list

Ask question

Product no.: 100039518
MIDWEST INDUSTRIES 30MM 1.5" 20 MOA QD CANTILEVER MOUNT, BLACK
Mfr Part: MIQD30SM20MOA 812102032373 QD Scope Mounts Midwest Industries incorporates on of the smoothest functioning QD levers on the market. Extremely smooth in operation with a multi-facetted adjustment nut to get the exact tension required without damaging the rail surface. Fully adjustable with no tools. Weighing in at 8.4 oz, these mounts are precision machined for optimum return to zero performance and reliability. Hard coat anodized 6061 Aluminum for a lifetime of service. Works with scopes up to a56mm objective lens. Works with scopes up to a 56mm Objective Weight: 8.4 oz Overall Length: 5.875" Width of Rings: .85" Distance between rings: 2.8" Offset from the first ring: 1.4" Height- top of rail to center line of ring: 1.5"

259.9 GBP 8 £259.90 *

Delivery time approx. 7-14 days.
8 pcs. in the USA warehouse

Specs: Elevation: 20 MOA Finish: Black Scope Tube Diameter: 30mm Style: Quick Detach

Add to shopping list

Ask question

Details

Add to shopping list

Ask question

Secure your scope with the Midwest Industries 30mm QD Cantilever Mount 🎯 Matte Black, 0 MOA elevation & smooth QD levers. Perfect for 56mm scopes. Shop now! ✅
