Area 419 is always looking for ways to improve existing products when we are not developing new technologies. With the rapid growth in popularity of ARCA rails in precision rifle, we saw a need to improve this great dovetail technology to something that could be mechanically locked in place instead of just friction. If you have ever tried using a Barricade stop on an existing ARCA rail, you’ve probably also seen it slide under much pressure. Rail Features: Serrated rail sides interface with our proprietary clamp design to mechanically lock it in place so no movement is possible. Rail is 14″ long giving you the entire length of the stock forend for attachments. 65 Engraved positions Fits the MPA BA and BA Comp chassis at a minimum, may also fit the Hybrid **Will not fit Lite** Spigot supports front of rail, but rail will work even if you do not have the MPA spigot, you may just see a small amount of flex with bipod fully forward Access to recoil lug wedge is not obstructed Made to the RRS 1.5″ Dovetail Standard, so you can be sure lever clamps will work No sharp edges. Every corner is radiused, and every edge is chamfered on the machine. Type 3 Hard Coat anodized for additional durability. Made from 6061-T6 Aluminum Rail comes with all necessary hardware
More...
134.9134.91GBP

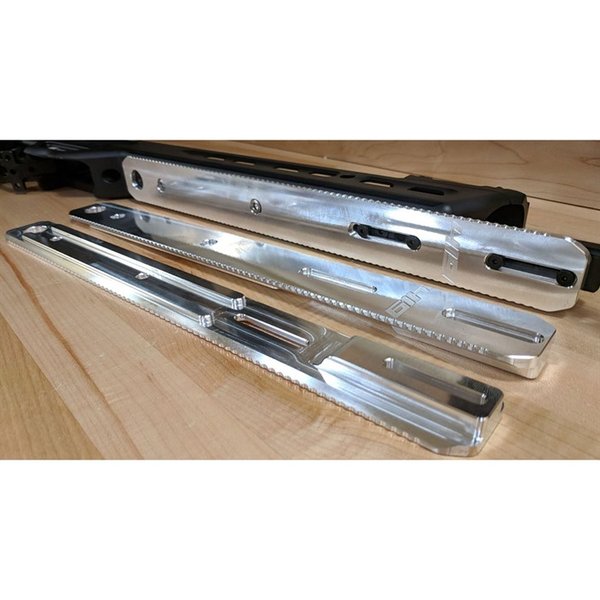

Product no.: 100032675 AREA 419 ARCALOCK 14" ARCA SWISS RAIL FOR MPA CHASSIS Mfr Part: 419-ALK-MPA14853675008914 Area 419 is always looking for ways to improve existing products when we are not developing new technologies. With the rapid growth in popularity of ARCA rails in precision rifle, we saw a need to improve this great dovetail technology to something that could be mechanically locked in place instead of just friction. If you have ever tried using a Barricade stop on an existing ARCA rail, you’ve probably also seen it slide under much pressure. Rail Features: Serrated rail sides interface with our proprietary clamp design to mechanically lock it in place so no movement is possible. Rail is 14″ long giving you the entire length of the stock forend for attachments. 65 Engraved positions Fits the MPA BA and BA Comp chassis at a minimum, may also fit the Hybrid **Will not fit Lite** Spigot supports front of rail, but rail will work even if you do not have the MPA spigot, you may just see a small amount of flex with bipod fully forward Access to recoil lug wedge is not obstructed Made to the RRS 1.5″ Dovetail Standard, so you can be sure lever clamps will work No sharp edges. Every corner is radiused, and every edge is chamfered on the machine. Type 3 Hard Coat anodized for additional durability. Made from 6061-T6 Aluminum Rail comes with all necessary hardware
The ARCALOCK 14" ARCA Swiss Rail features a proprietary clamp design for mechanical locking, ensuring no movement under pressure.
It is compatible with MPA BA and BA Comp chassis, has 65 engraved positions, and maintains access to the recoil lug wedge.
The rail is made from 6061-T6 Aluminum, is Type 3 Hard Coat anodized for durability, and has a user-friendly design with no sharp edges.
Attributes
Attachment:
Adapter Mount
Delivery weight: 0.299kg
Item details
Made in USA
🔒 Upgrade your precision rifle with the AREA 419 ARCALOCK 14" ARCA Swiss Rail for MPA Chassis. Lock in accuracy & stability. Shop now for hard-anodized durability! 🎯
Area 419 is always looking for ways to improve existing products when we are not developing new technologies. With the rapid growth in popularity of ARCA rails in precision rifle, we saw a need to improve this great dovetail technology to something that could be mechanically locked in place instead of just friction. If you have ever tried using a Barricade stop on an existing ARCA rail, you’ve probably also seen it slide under much pressure. Rail Features: Serrated rail sides interface with our proprietary clamp design to mechanically lock it in place so no movement is possible. Rail is 14″ long giving you the entire length of the stock forend for attachments. 65 Engraved positions Fits the MPA BA and BA Comp chassis at a minimum, may also fit the Hybrid **Will not fit Lite** Spigot supports front of rail, but rail will work even if you do not have the MPA spigot, you may just see a small amount of flex with bipod fully forward Access to recoil lug wedge is not obstructed Made to the RRS 1.5″ Dovetail Standard, so you can be sure lever clamps will work No sharp edges. Every corner is radiused, and every edge is chamfered on the machine. Type 3 Hard Coat anodized for additional durability. Made from 6061-T6 Aluminum Rail comes with all necessary hardware
