BLACK RIFLE DISEASE ENGINEERIN
AR-15/M16 GAS BLOCK PINNING JIG

100006129

Description
Ratings (3)

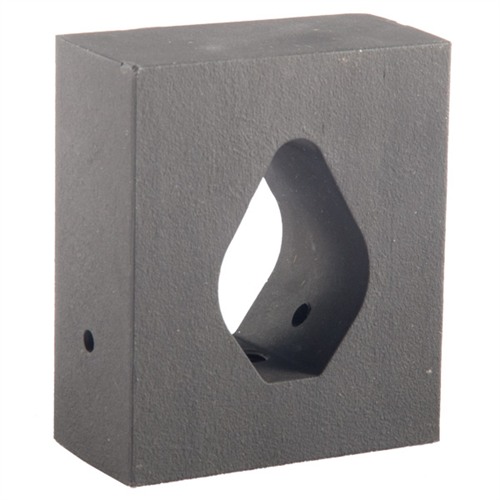

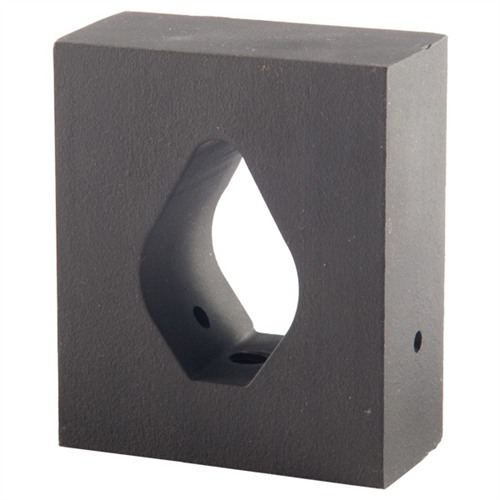

Drilling Fixture For Permanent Attachment Of Low-Profile Gas Blocks

Heavy steel fixture securely holds and aligns a low-profile Vltor or BCM gas block to enable precise drilling of a straight or taper pin hole for permanent installation of the block. Can be modified with file or rotary tool to fit other low-profile gas blocks, such as Yankee Hill and Stag Arms. Instructions included.

SPECS: 836 plate steel, black oxide coating. 1" (2.54cm) long, 2" (5.08cm) wide, 2 3⁄8" (5.99cm) tall. 17.3 oz. (490g) weight.

More...

Customer ratings for BLACK RIFLE DISEASE ENGINEERIN GAS BLOCK PINNING JIG

Number of ratings: 3
From brownells.com: 3
Average rating: 5

does what it says it does (01/01/2012)

Used this jig to pin three VLTOR gas blocks so far. It's a simple purpose-built jig that's easy to set up and use in a drill press. I, personally, would not attempt to use this jig with a hand drill. Make sure to use a #31 drill bit to drill through the gas block and barrel. It would be nice if a drill bit was included, but no big deal to me.

Great! (09/06/2015)

Bought this and modified it to fit Troy gas blocks. The #31 guide hole was just not providing enough contact on the barrel for my liking so I enlarged it #29 and now use M3.5 pins instead of 1/8. All in all a great product after 12 barrels it is still going strong.

Simply awesome (06/08/2017)

I purchased the model for BCM gas blocks directly from Jake at BRD and it is awesome. It is an amazing product that is easy to use. I was going to pay a shop $50 to do one barrel, but after getting this jig I have done 4 so far, and the jig is still like new. I see this jig lasting a long time, as long as I can press a trigger.

Read 3 more ratings on brownells.com

0 0 1 GBP

Product no.: 100006129
BLACK RIFLE DISEASE ENGINEERIN GAS BLOCK PINNING JIG Heavy steel fixture securely holds and aligns a low-profile Vltor or BCM gas block to enable precise drilling of a straight or taper pin hole for permanent installation of the block. Can be modified with file or rotary tool to fit other low-profile gas blocks, such as Yankee Hill and Stag Arms. Instructions included.

Notify on availability

Not available.

Specs: Make: AR-15

Add to shopping list

Ask question

Details

Add to shopping list

Ask question

Top takeaways

The AR-15/M16 Gas Block Pinning Jig is designed to securely hold and align low-profile Vltor or BCM gas blocks for precise drilling.
This heavy steel fixture can be adapted for use with other low-profile gas blocks such as Yankee Hill and Stag Arms by filing or using a rotary tool.
It is made of 836 plate steel with a black oxide coating, measuring 1" long, 2" wide, and 2 3⁄8" tall, and it weighs 17.3 oz.

Attributes

Make: AR-15 Delivery weight: 0.522kg

Item details

Made in USA

🛠️ Perfect your AR-15 setup with the BLACK RIFLE DISEASE ENGINEERIN Gas Block Pinning Jig! Durable, precise & versatile for all low-profile blocks. Get started now! 🔧✨

Description
Ratings (3)

Drilling Fixture For Permanent Attachment Of Low-Profile Gas Blocks

SPECS: 836 plate steel, black oxide coating. 1" (2.54cm) long, 2" (5.08cm) wide, 2 3⁄8" (5.99cm) tall. 17.3 oz. (490g) weight.

More...

Customer ratings for BLACK RIFLE DISEASE ENGINEERIN GAS BLOCK PINNING JIG

Number of ratings: 3
From brownells.com: 3
Average rating: 5

does what it says it does (01/01/2012)

Great! (09/06/2015)

Simply awesome (06/08/2017)

Read 3 more ratings on brownells.com
